Tunnel mode between two Racoon hosts with x509 authentication

Intro

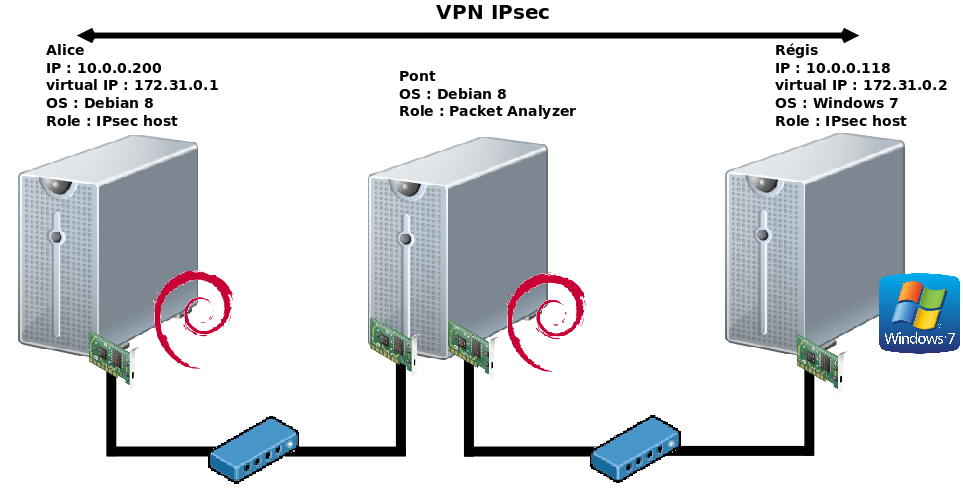

Network diagram

Creating a Certification Authority

See here

Tunnel Mode

Alice

Virtual interface

user@alice # apt-get install uml-utilities
user@alice # tunctl -u admin
user@alice # ifconfig tap0 172.31.0.1
user@alice # ifconfig tap0 up

/etc/racoon/racoon.conf

#path pre_shared_key "/etc/racoon/psk.txt";
path certificate "/etc/racoon/certs";

listen {
	isakmp 192.168.0.84 [500];
}

remote 192.168.0.95 {
	exchange_mode main;
	my_identifier asn1dn;
	peers_identifier asn1dn;
	verify_identifier on;
	certificate_type x509 "newcert.pem" "privkey.pem";
	proposal {
		encryption_algorithm aes 256;
		hash_algorithm sha1;
		authentication_method rsasig ;
		#authentication_method pre_shared_key;
		#dh_group modp1024;
		dh_group 15;
	}
#        generate_policy off;
}

mode_cfg {
	network4 172.31.0.2;     # 192.168.100.1 est la premiere adresse allouee aux clients VPN
	split_network include 172.31.0.0/24;
	pool_size 20;
	netmask4 255.255.255.0;
	auth_source system;
	#dns4 192.168.200.254;       # 192.168.200.254 est l'adresse du DNS dans le reseau local distant
	banner "/etc/racoon/motd";
	#pfs_group 0;
}

#sainfo address 10.0.0.200 any address 10.0.0.118 any {
sainfo anonymous {
	lifetime time 1 hour;
	encryption_algorithm aes 128;
	authentication_algorithm hmac_sha1;
	compression_algorithm deflate;
}


/etc/ipsec-tools.conf

#!/usr/sbin/setkey -f

# NOTE: Do not use this file if you use racoon with racoon-tool
# utility. racoon-tool will setup SAs and SPDs automatically using
# /etc/racoon/racoon-tool.conf configuration.
#

## Flush the SAD and SPD
#
flush;
spdflush;

spdadd 172.31.0.1 172.31.0.10 any -P out ipsec
	esp/tunnel/192.168.0.84-192.168.0.95/require;

spdadd 172.31.0.10 172.31.0.1 any -P in ipsec
	esp/tunnel/192.168.0.95-192.168.0.84/require;

Bob

Virtual interface

user@bob # ifconfig eth1:1 172.31.0.10 netmask 255.255.255.0

Installation

user@bob # apt-get install racoon ipsec-tools

NB : Choose direct modification during raccon installation process. For security reasons use tun0 interface rather than a alias eth1:1

/etc/racoon/racoon.conf

path certificate "/etc/racoon/certs";

remote 192.168.0.84 {
	exchange_mode main;
	certificate_type x509 "newcert.pem" "privkey.pem";
	ca_type x509 "cacert.pem";      #certificate type and file name
	my_identifier asn1dn;
	proposal_check obey;            #obeying the options requested by other peer
	ike_frag on;                    #IKE fragmentation enabled
	mode_cfg on;                    #accepting information about the network being connected to
	verify_cert off;                #verifying certificates set to off
	proposal {
		#cryptography and hash algorithm
		encryption_algorithm aes 256;
		hash_algorithm sha1;
		#authentication method
		authentication_method rsasig ;
		#Diffie-Hellman exponential group
		dh_group 15;
	}
	generate_policy off;

#       script "/etc/racoon/phase1-up.sh" phase1_up;
#       script "/etc/racoon/phase1-down.sh" phase1_down;

}

sainfo anonymous {
	#second phase information lifetime
	lifetime time 1 hour;
	#cryptography, authentication and compression algorithm
	encryption_algorithm aes 128;
	authentication_algorithm hmac_sha1;
	compression_algorithm deflate;
}

/etc/ipsec-tools.conf

#!/usr/sbin/setkey -f

## Flush the SAD and SPD
#
flush;
spdflush;

## Some sample SPDs for use racoon
#
spdadd 172.31.0.10 172.31.0.1 any -P out ipsec
	esp/tunnel/192.168.0.95-192.168.0.84/require;
#
spdadd 172.31.0.1 172.31.0.10 any -P in ipsec
	esp/tunnel/192.168.0.84-192.168.0.95/require;

Summary
