Comment mettre en place un VPN WireGuard sur un serveur Debian 10 Buster

Intro

WireGuard est le nouveau VPN à la mode. Il est performant, sécurisé et facile à configurer.

Voyons comment le mettre en place dans un environnement Debian GNU/Linux serveur avec des clients Windows.

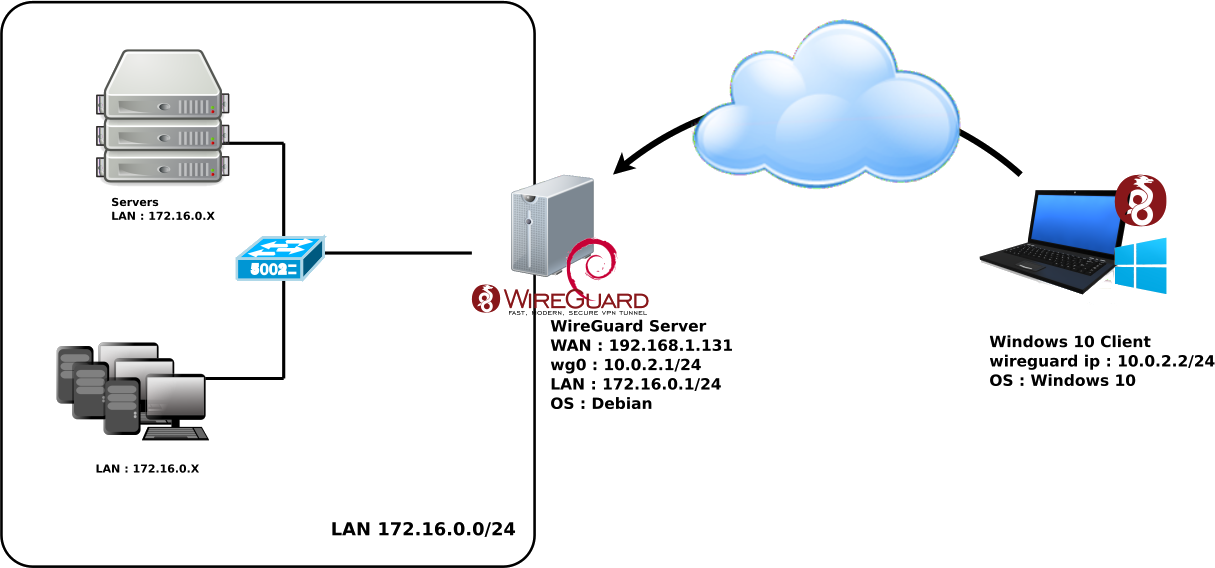

Schéma réseau

VPN WireGuard | Schéma réseau

Serveur Debian (Partie I)

Installation

root@host:~# echo 'deb http://deb.debian.org/debian/ unstable main' >> /etc/apt/sources.list.d/unstable.list
root@host:~# printf 'Package: *\nPin: release a=unstable\nPin-Priority: 90\n' >> /etc/apt/preferences.d/limit-unstable
root@host:~# apt update
root@host:~# apt install wireguard
root@host:~# umask 077
root@host:~# wg genkey > wg-private.key
root@host:~# wg pubkey < wg-private.key > wg-public.key

Configuration

root@host:~# cat wg-private.key
2GIURzIDBgI1Y+1Ei+i2C5kEOR53mH172MaidaVpD3M=
# define the WireGuard service
[Interface]

# contents of file wg-private.key that was recently created
PrivateKey = 2GIURzIDBgI1Y+1Ei+i2C5kEOR53mH172MaidaVpD3M=

# UDP service port; 51820 is a common choice for WireGuard
ListenPort = 51820

Création de l'interface wg0

# indicate that wg0 should be created when the system boots, and on ifup -a
auto wg0

# describe wg0 as an IPv4 interface with static address
iface wg0 inet static

        # static IP address
        address 10.0.2.1/24

        # before ifup, create the device with this ip link command
        pre-up ip link add $IFACE type wireguard

        # before ifup, set the WireGuard config from earlier
        pre-up wg setconf $IFACE /etc/wireguard/$IFACE.conf

        # after ifdown, destroy the wg0 interface
        post-down ip link del $IFACE

Client Windows

Télécharger la dernière version du logiciel sur le site officiel https://wireguard.com/, et l'installer.

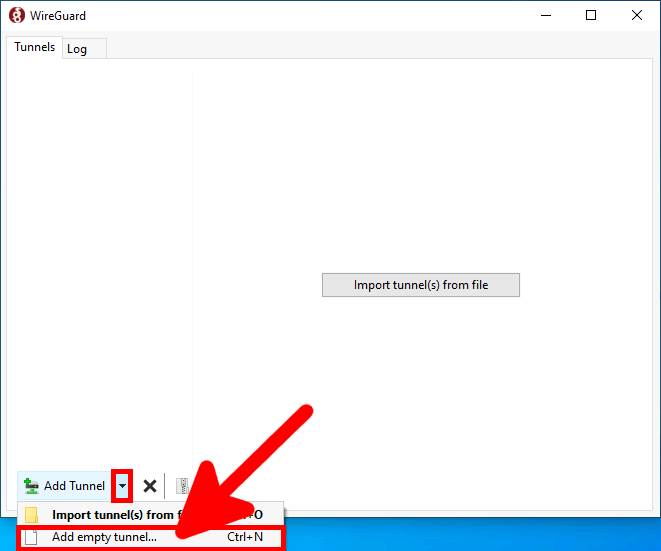

VPN WireGuard | Windows client, menu démarrer, programme wireguard VPN WireGuard | Windows, client wireguard, ajouter un profil
root@host:~# cat wg-public.key
hlKy6azGCB0uVbCdkW8Htx23k57iWzOFJRLAYHTx5wU=

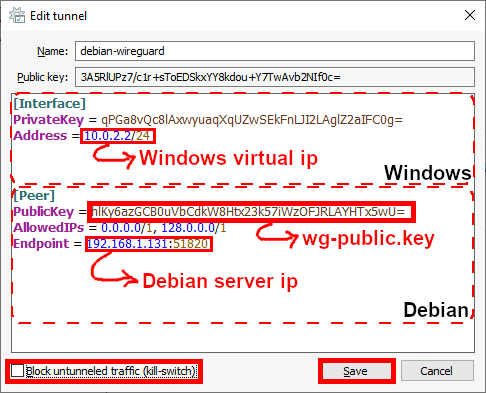

VPN WireGuard | Windows client, éditer profil
[Interface]
PrivateKey = qPGa8vQc8lAxwyuaqXqUZwSEkFnLJI2LAglZ2aIFC0g=
Address = 10.0.2.2/24

[Peer]
PublicKey = hlKy6azGCB0uVbCdkW8Htx23k57iWzOFJRLAYHTx5wU=
AllowedIPs = 0.0.0.0/1, 128.0.0.0/1
Endpoint = 192.168.1.131:51820

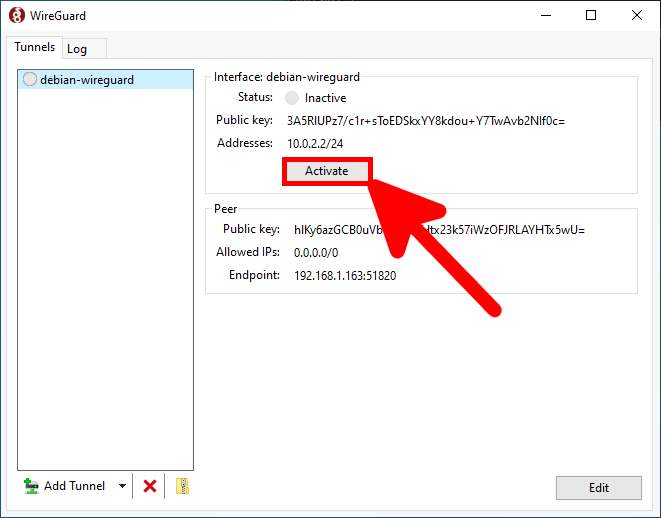

VPN WireGuard | Windows client, activer le profil

Serveur Debian (Partie II)

WireGuard

root@host:~# ifup wg0

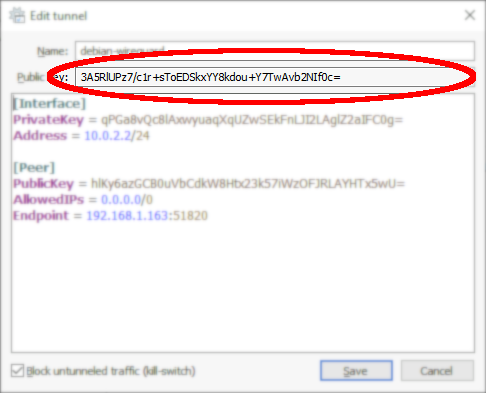

VPN WireGuard | Windows client, copie de la clé publique
root@host:~# wg set wg0 peer CLIENT_PUBLIC_KEY allowed-ips 0.0.0.0/0

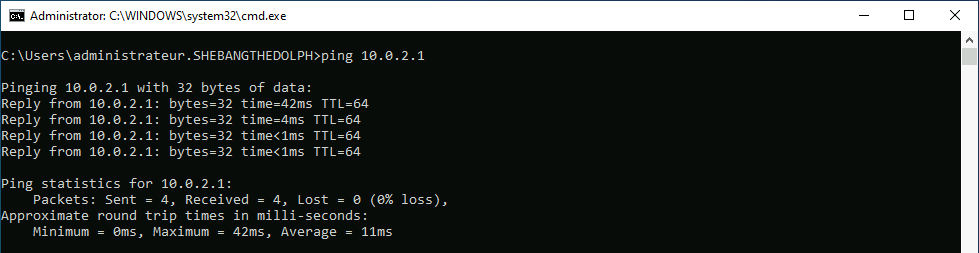

VPN WireGuard | Windows client, ping vers l'interface wg0
 # indicate that wg0 should be created when the system boots, and on ifup -a
auto wg0

# describe wg0 as an IPv4 interface with static address
iface wg0 inet static

        # static IP address
        address 10.0.2.1/24

        # before ifup, create the device with this ip link command
        pre-up ip link add $IFACE type wireguard

        # before ifup, set the WireGuard config from earlier
        pre-up wg setconf $IFACE /etc/wireguard/$IFACE.conf

        # after ifdown, destroy the wg0 interface
        post-down ip link del $IFACE
        # allowed clients
	up wg set wg0 peer CLIENT01_PUBLIC_KEY allowed-ips 0.0.0.0/0
	up wg set wg0 peer CLIENT02_PUBLIC_KEY allowed-ips 0.0.0.0/0

Mode routeur

Activer l'ip forwarding

net.ipv4.ip_forward = 1
root@host:~# sysctl -p /etc/sysctl.conf
root@host:~# cat /proc/sys/net/ipv4/ip_forward
1

Règle iptables NAT

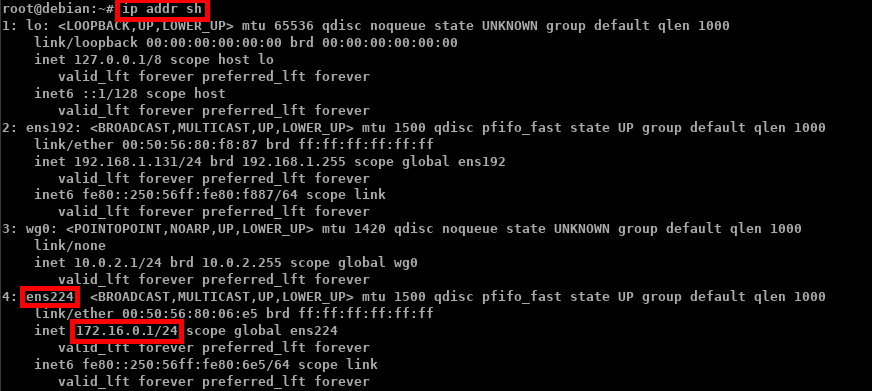

VPN WireGuard | Serveur Debian, ip addr sh
root@host:~# iptables -t nat -A POSTROUTING -s 10.0.2.0/24 -o ens224 -j MASQUERADE
root@host:~# iptables -I INPUT -p udp -m udp --dport 51820 -m state --state NEW,ESTABLISHED,RELATED -j ACCEPT
root@host:~# iptables -I OUTPUT -p udp -m udp --sport 51820 -m state --state ESTABLISHED,RELATED -j ACCEPT

Règles nftables NAT

root@host:~# nft add table ip NAT
root@host:~# nft add chain ip NAT my_masquerade '{ type nat hook postrouting priority 100; }'
root@host:~# nft add rule NAT my_masquerade ip saddr { 10.0.2.0/24 } oifname ens224 masquerade
root@host:~# nft add rule ip filter INPUT udp dport 51820 ct state new,established counter accept
root@host:~# nft add rule ip filter OUTPUT udp sport 51820 ct state established counter accept

Test depuis Windows

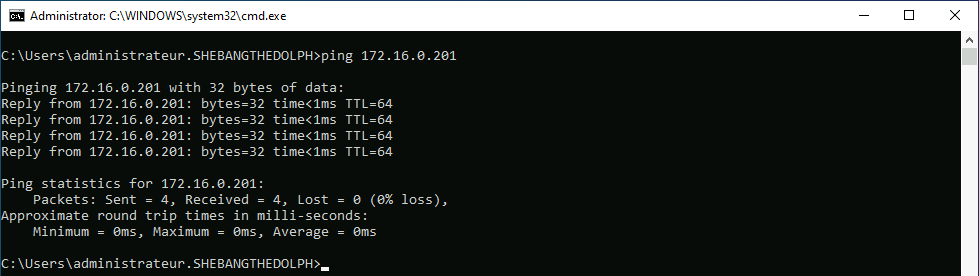

VPN WireGuard | Windows client, ping vers hôte interne

Dépannage

root@host:~# modprobe wireguard && echo module wireguard +p > /sys/kernel/debug/dynamic_debug/control
root@host:~# tail -f /var/log/syslog
root@host:~# modprobe wireguard && echo module wireguard -p > /sys/kernel/debug/dynamic_debug/control
