Microsoft SQL Server Always On in a Workgroup environment

Intro

I had to set a high availability Microsoft SQL Server in a WORKGROUP environment. Since Microsoft SQL Server 2017 the Always On feature is available (for only one database with a MSSQL Standard licencing). And since Windows 2016 Server Standard High Availability cluster is possible in a WORKGROUP environment.

Configuration

  • OS : Windows 2016 Server Standard
  • Microsoft SQL Server : 2017 Standard

Network diagram

Create Microsoft SQL service account (MSSQL01 and MSSQL02)

  • Warning, the /expires:never switch doesn't seem working
net user mssqlservice MyPassw0rdMSSQL! /add /expires:never
net localgroup administrators mssqlservice /add

Microsoft SQL Server Installation (MSSQL01 and MSSQL02)

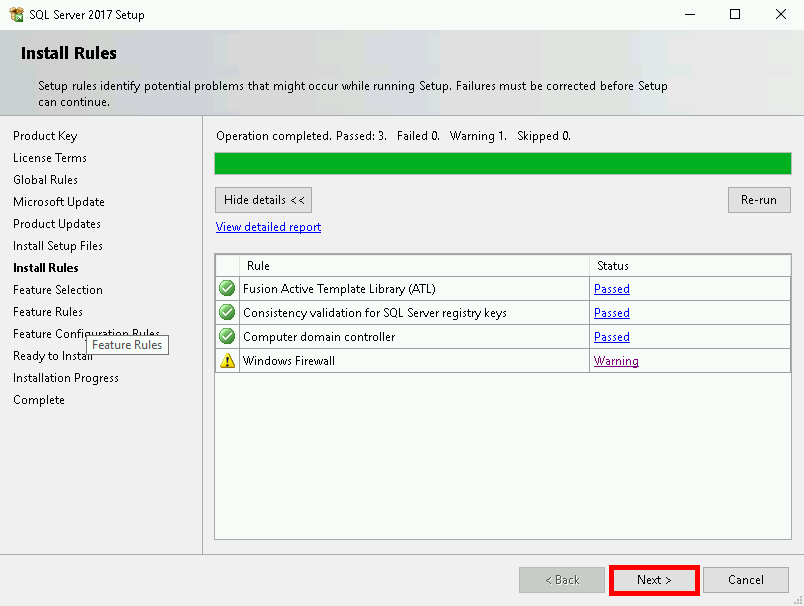

  • Let's do a classic installation

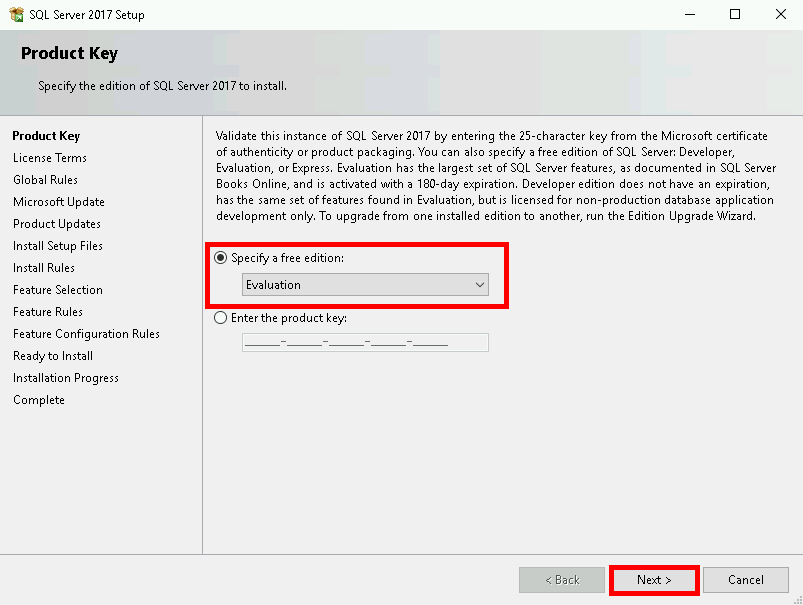

  • Specify the edition. As I'm in a test environment I will use Evaluation.

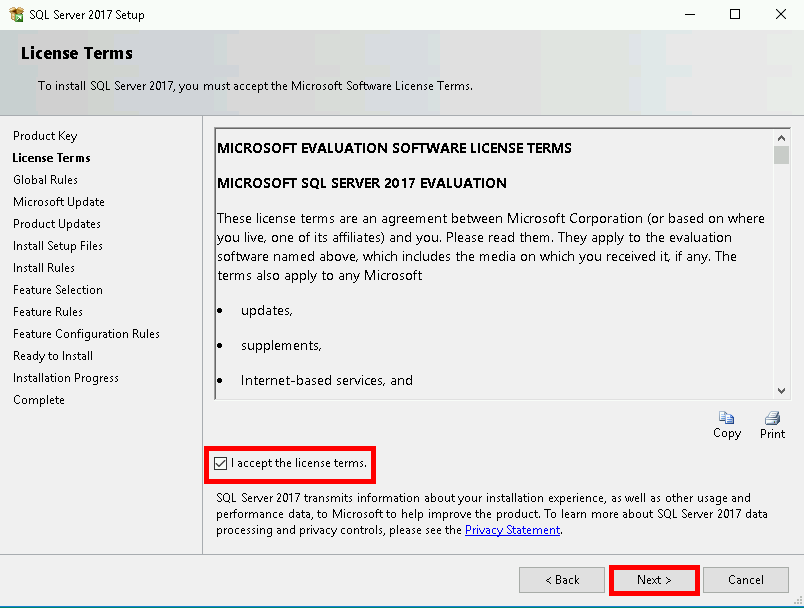

  • Accept the licence terms.

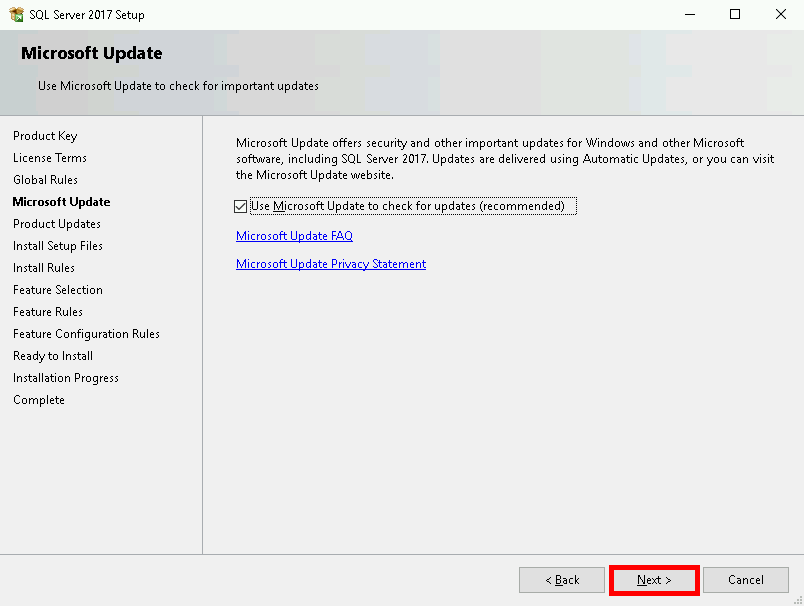

  • Do the Microsoft Update now or later.

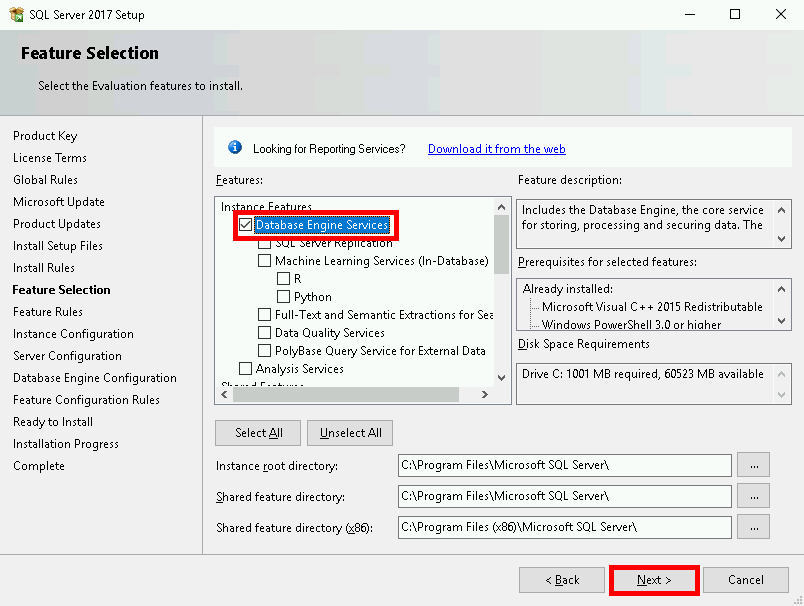

  • Select minimal features.

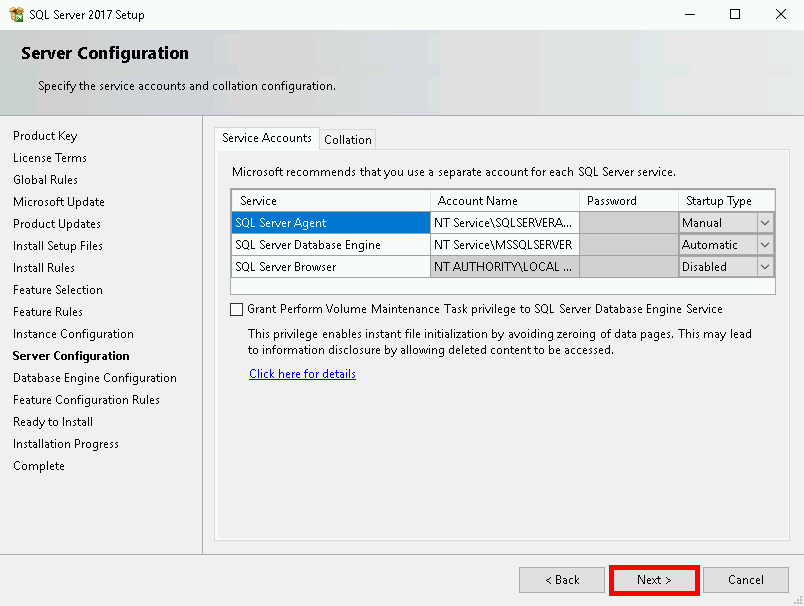

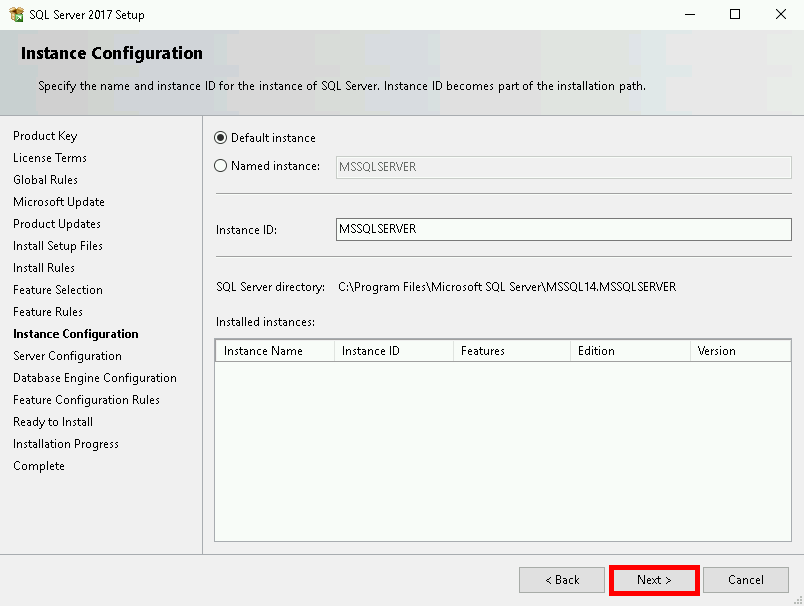

  • Set Instance ID as you wish.

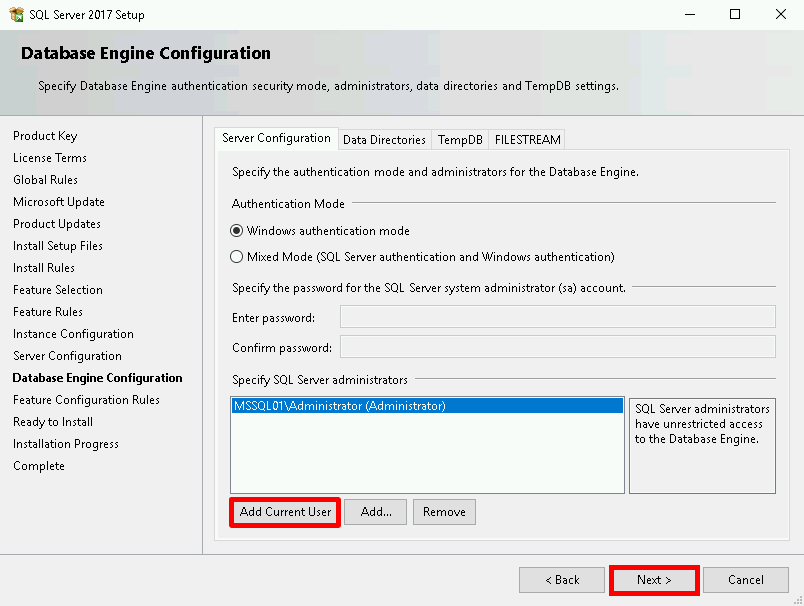

  • Click on Add Current User to add current user. I won't use SQL Server authentication

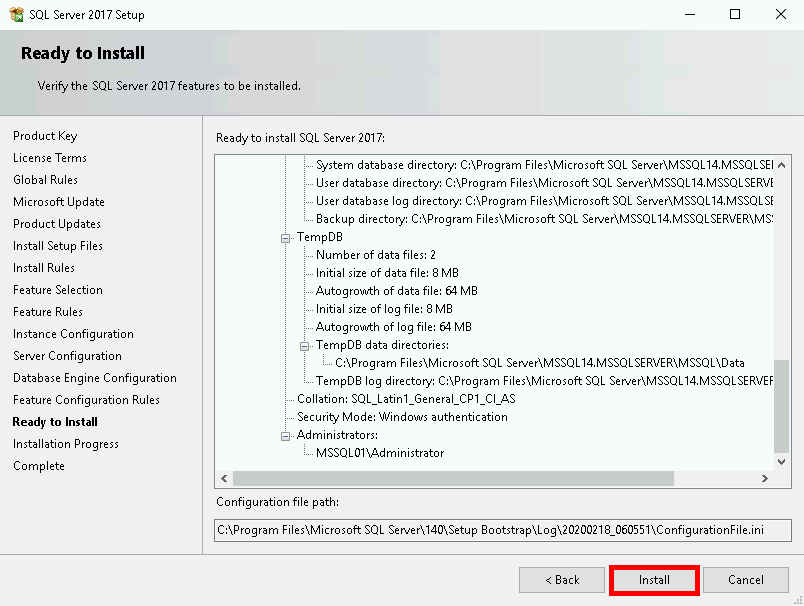

  • Click Install

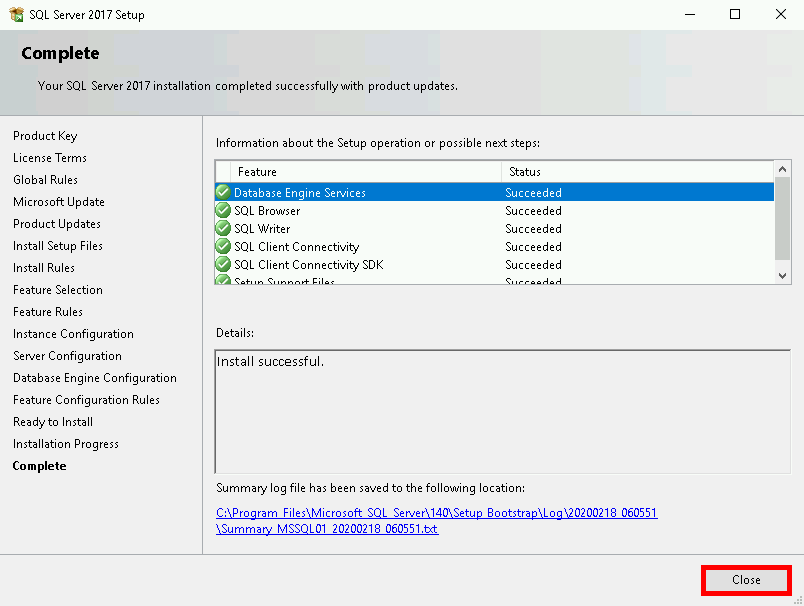

  • Done

Network and DNS configuration (MSSQL01 and MSSQL02)

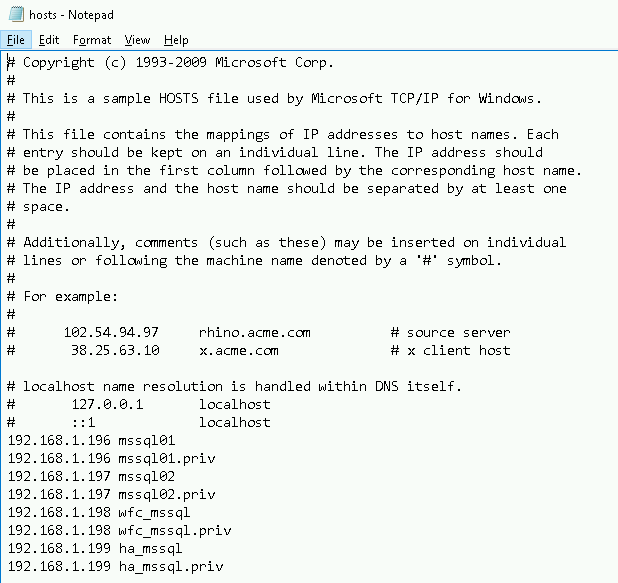

  • Add DNS records inside C:\Windows\System32\drivers\etc\hosts file
192.168.1.196 mssql01
192.168.1.196 mssql01.priv
192.168.1.197 mssql02
192.168.1.197 mssql02.priv
192.168.1.198 wfc_mssql
192.168.1.198 wfc_mssql.priv
192.168.1.199 ha_mssql
192.168.1.199 ha_mssql.priv

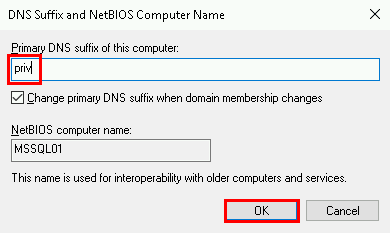

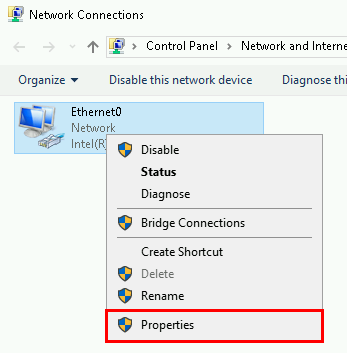

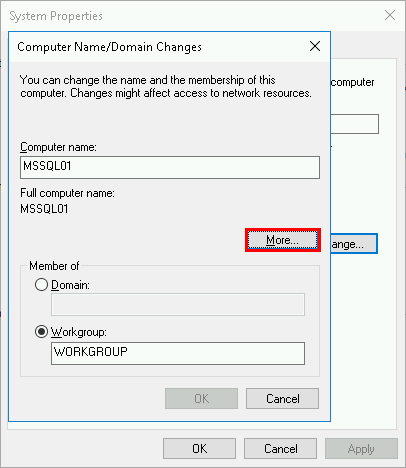

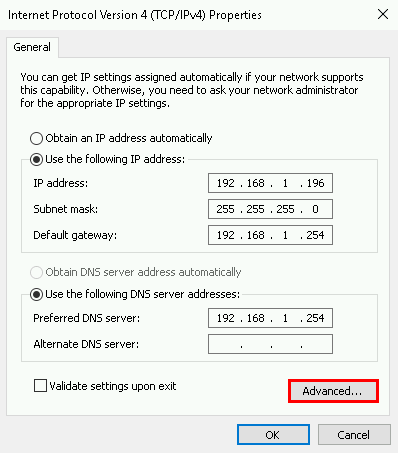

  • Add Primary DNS suffix

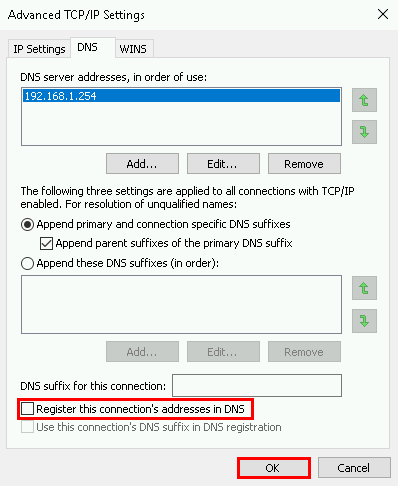

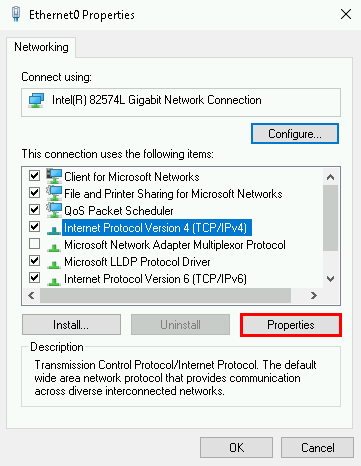

  • Disable DNS registering

Windows Failover Clustering (MSSQL01 and MSSQL02)

Install the Windows Failover Clustering role.

Windows Failover Clustering Install

Install from the graphical interface

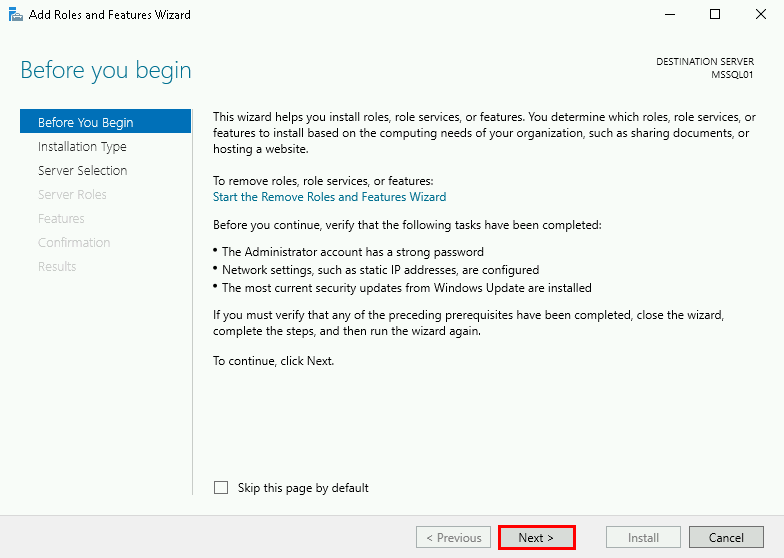

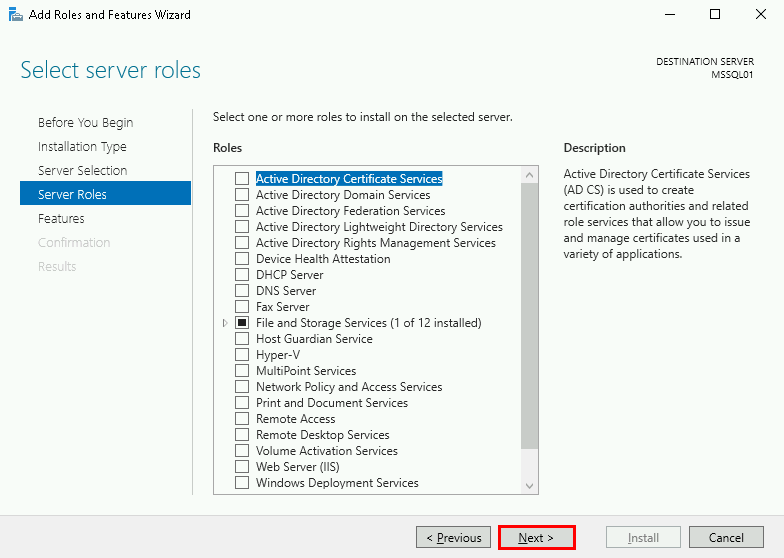

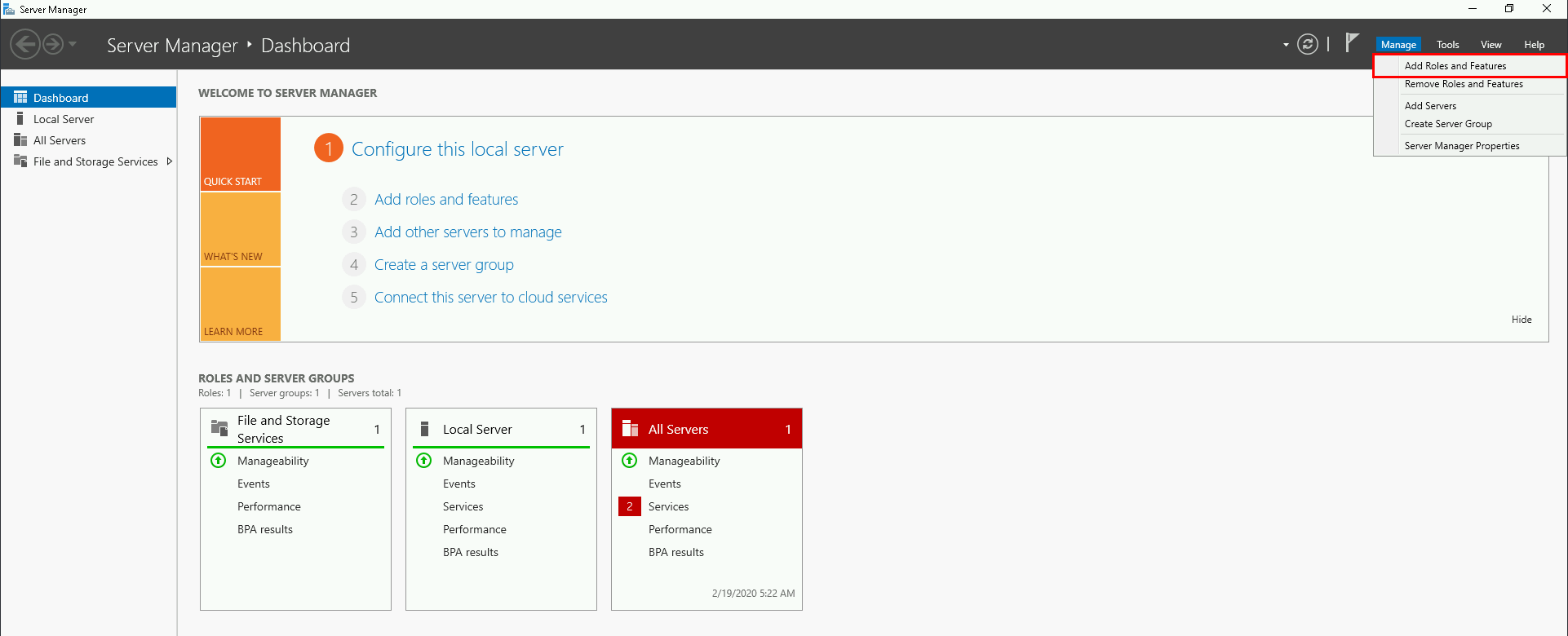

  • From Server Manager select Add Roles and Features

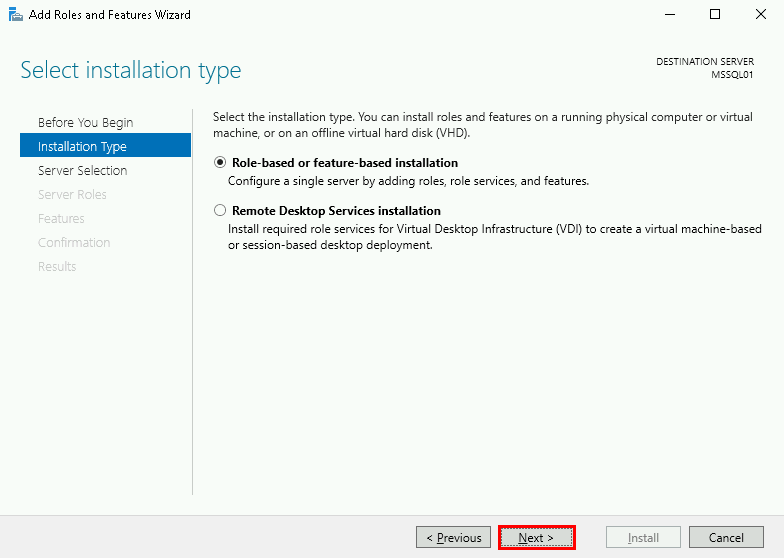

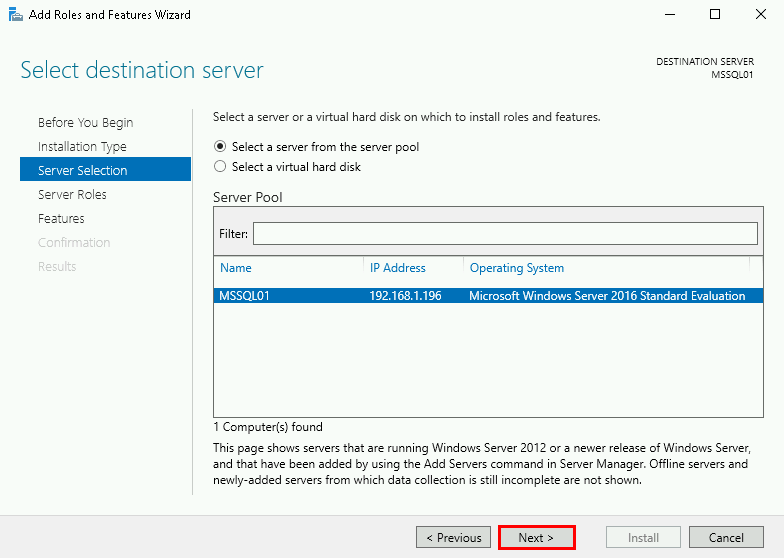

  • Follow the instructions

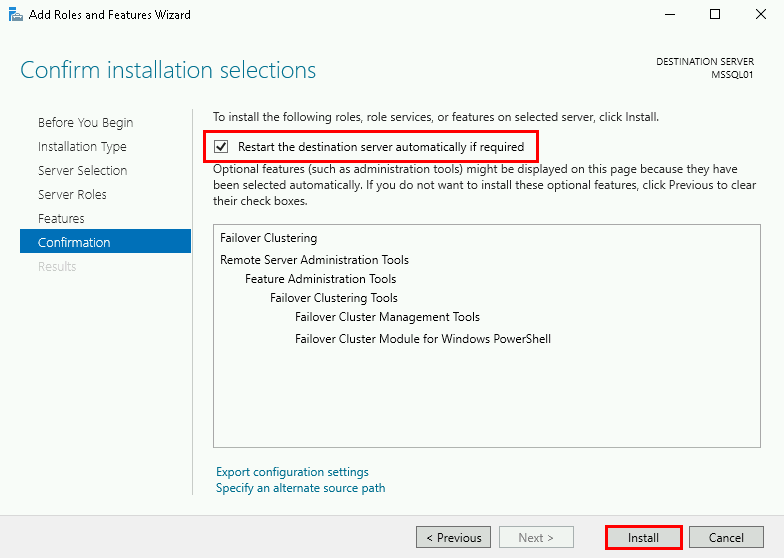

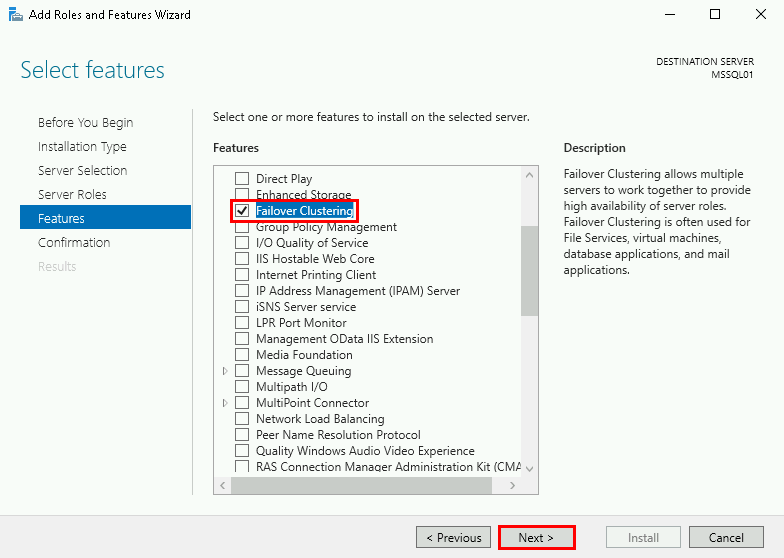

  • Select Failover Clustering

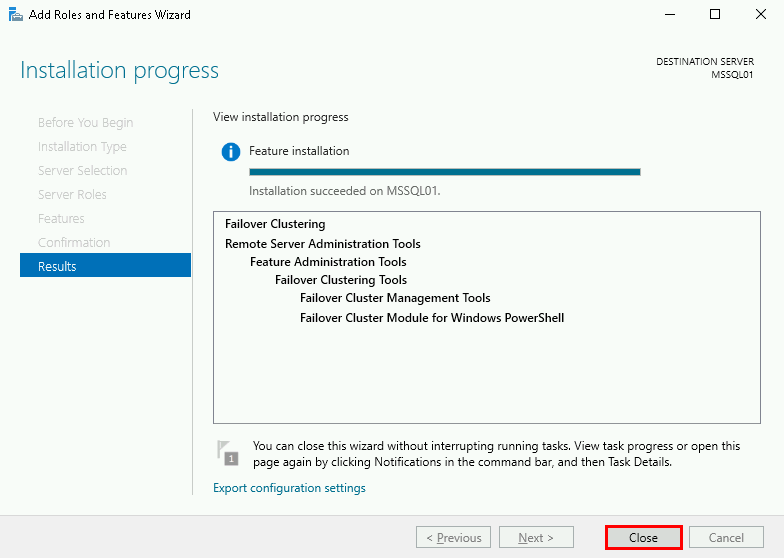

  • Let it Restart if he wants to

Install With PowerShell

  • Or with a single PowerShell command :
Install-WindowsFeature -Name Failover-Clustering –IncludeManagementTools -Restart

Windows Failover Clustering Configuration (MSSQL01)

Configure the Windows Failover Clustering role.

Configuration from the GUI

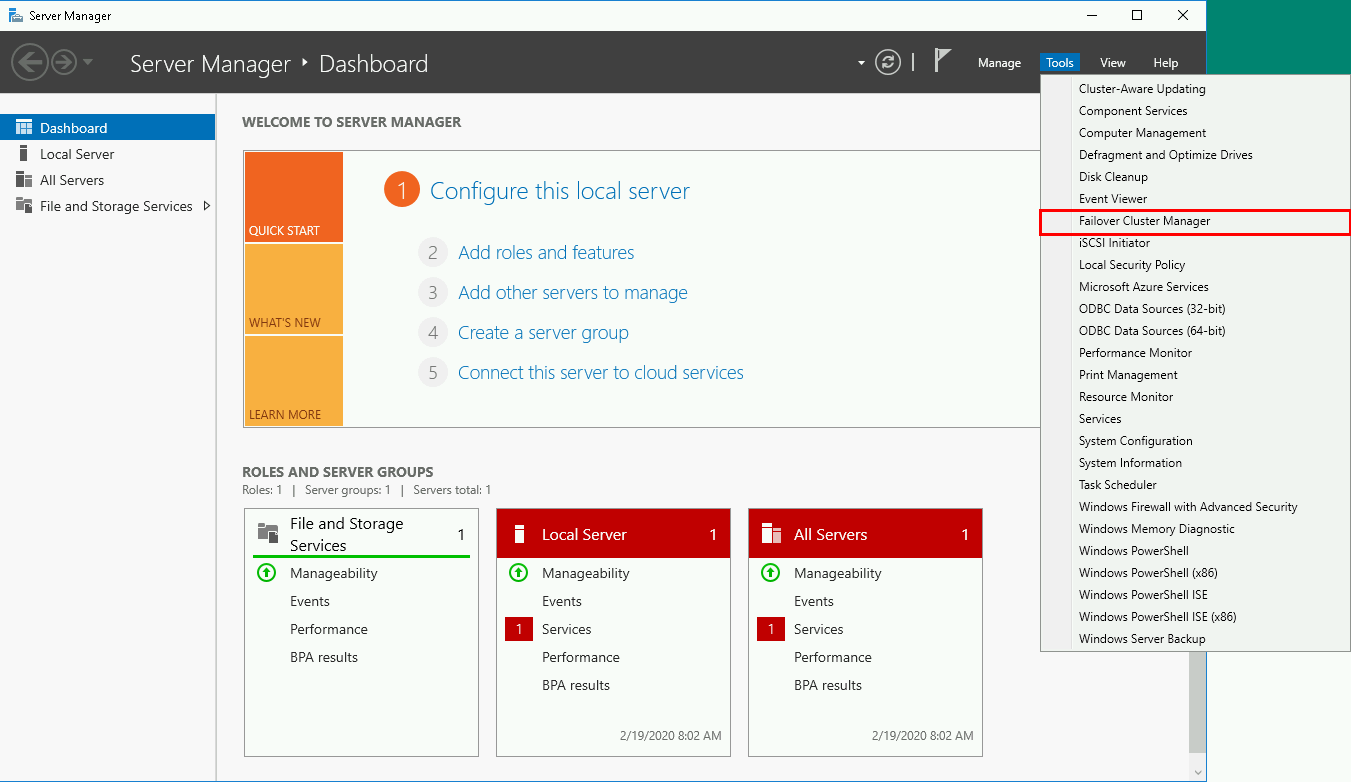

  • From Server Manager select Failover Cluster Manager

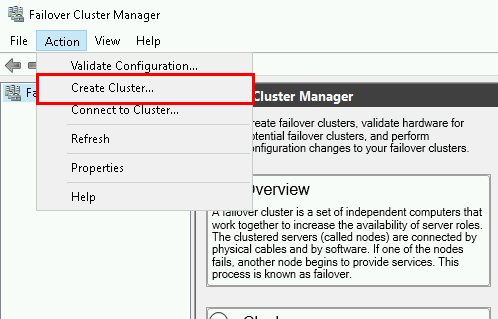

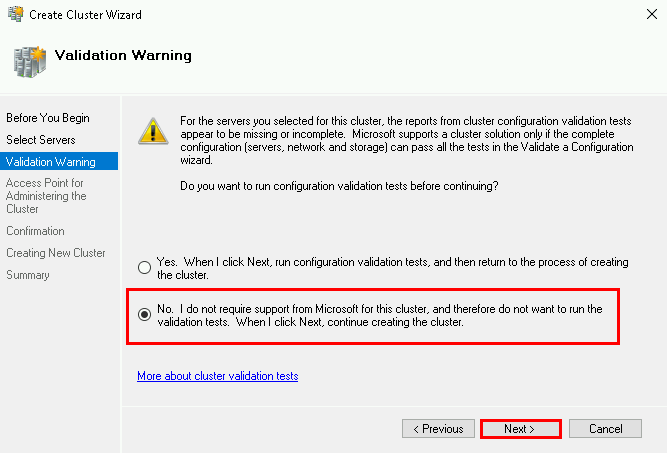

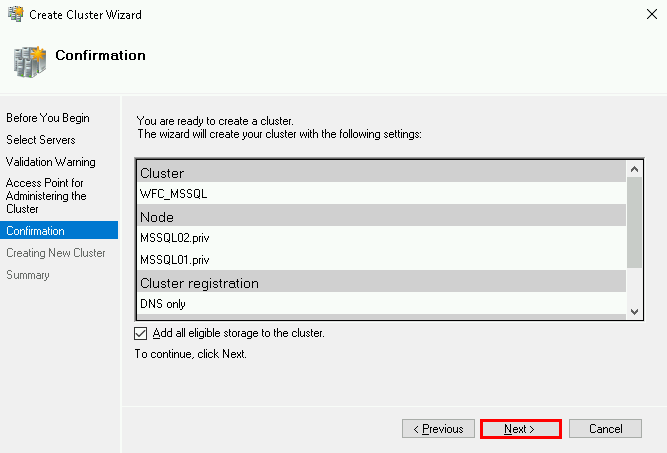

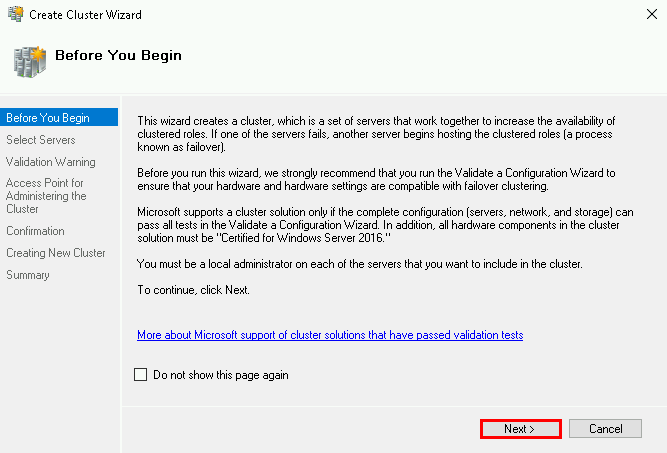

  • Create Cluster

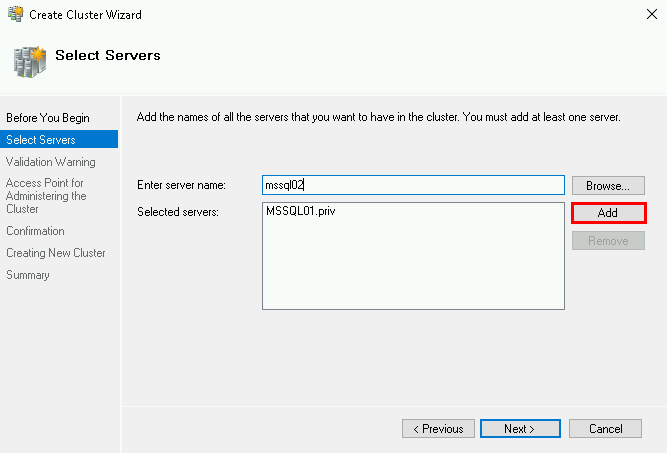

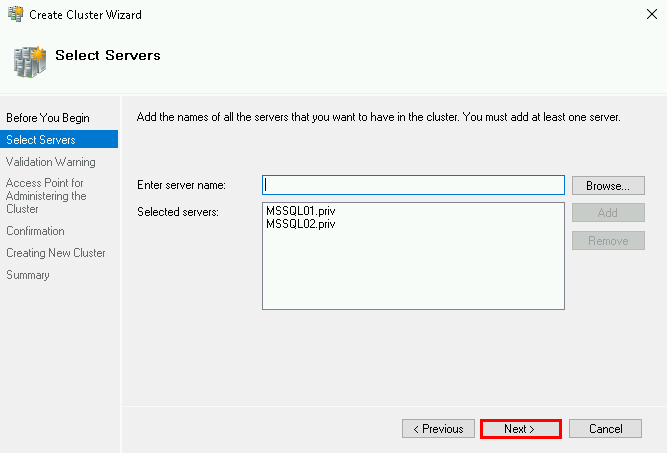

  • Add mssql servers

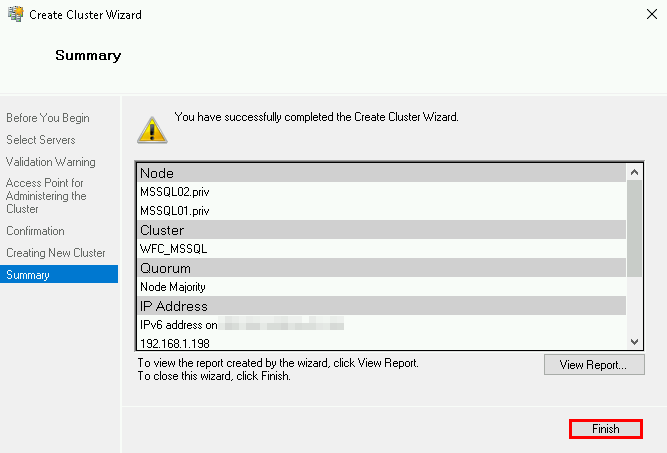

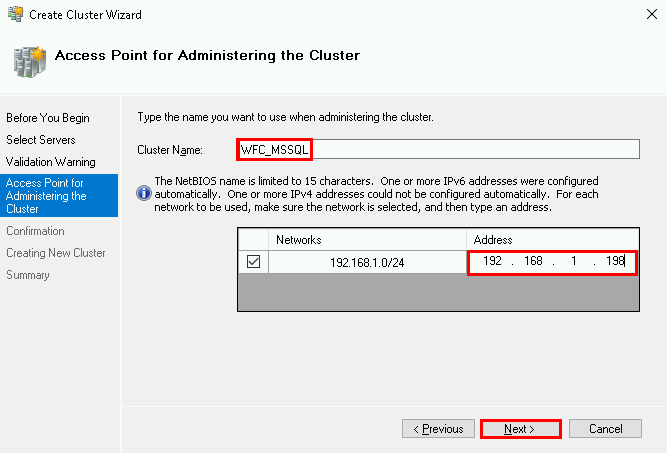

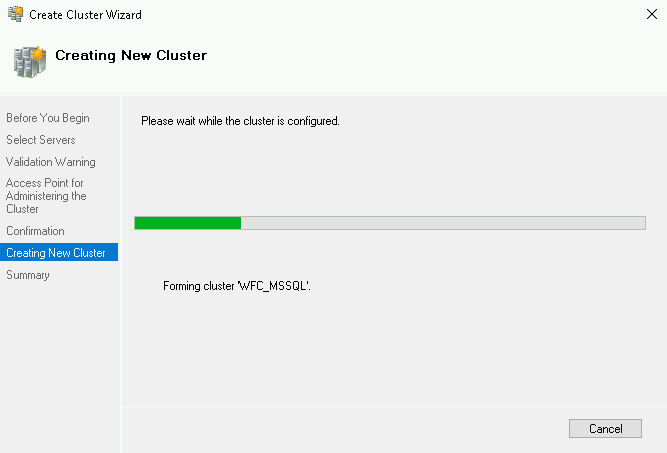

  • Give a Cluster Name and set ip address

Configuration with PowerShell

  • Or with a single PowerShell command :
New-Cluster -Name WFC_MSSQL -Node mssql01.priv, mssql02.priv -AdministrativeAccessPoint DNS -StaticAddress 192.168.1.198

Enable AlwaysOn Availability (MSSQL01 and MSSQL02)

In Microsoft SQL Server we need to enable the AlwaysOn Availability feature.

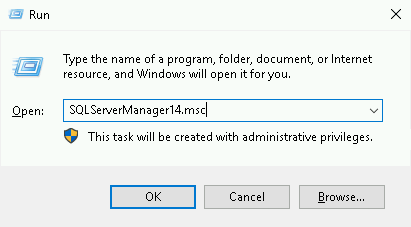

  • Open the SQL Server Configuration Manager

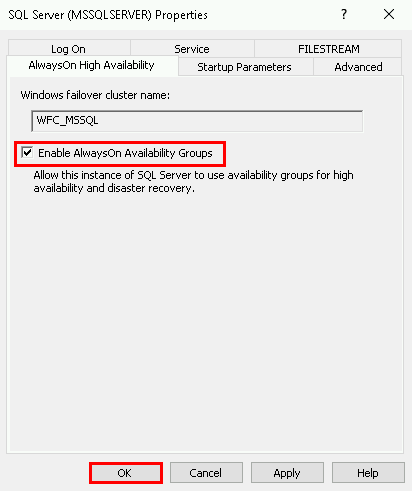

  • Enable AlwaysOn Availability

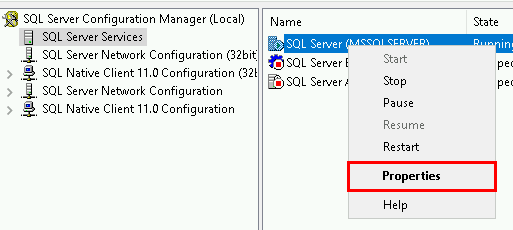

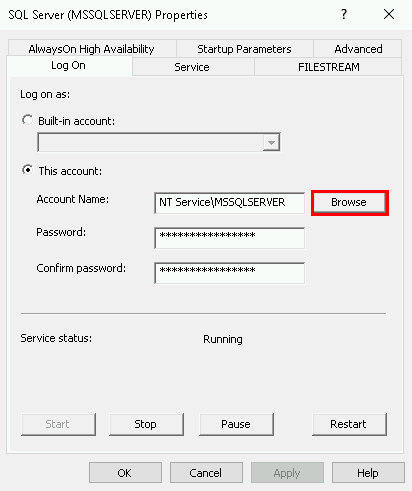

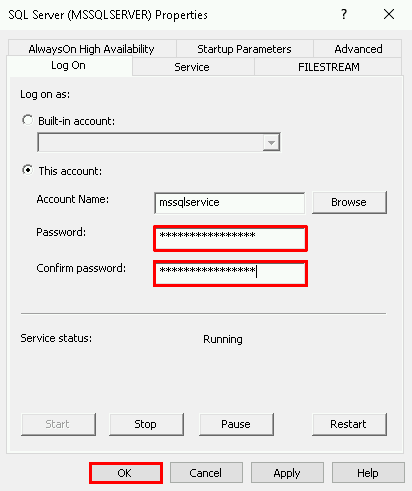

  • Change Log On Account

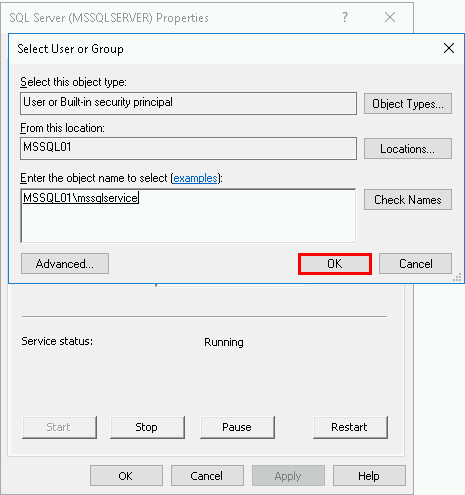

  • Use the mssqlservice account previously created
  • Set the password

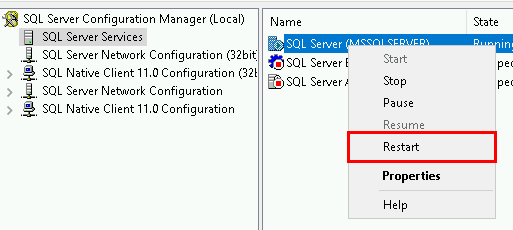

  • Restart SQL Server

Microsoft SQL Server Management Studio (MSSQL01 and MSSQL02)

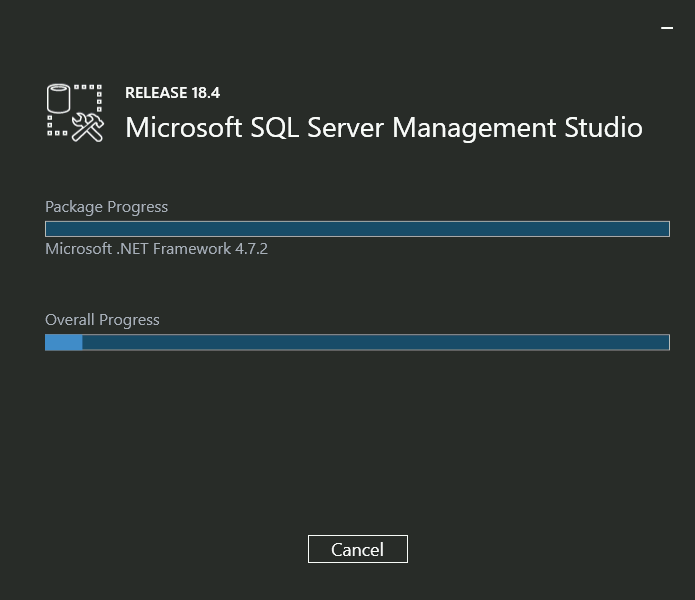

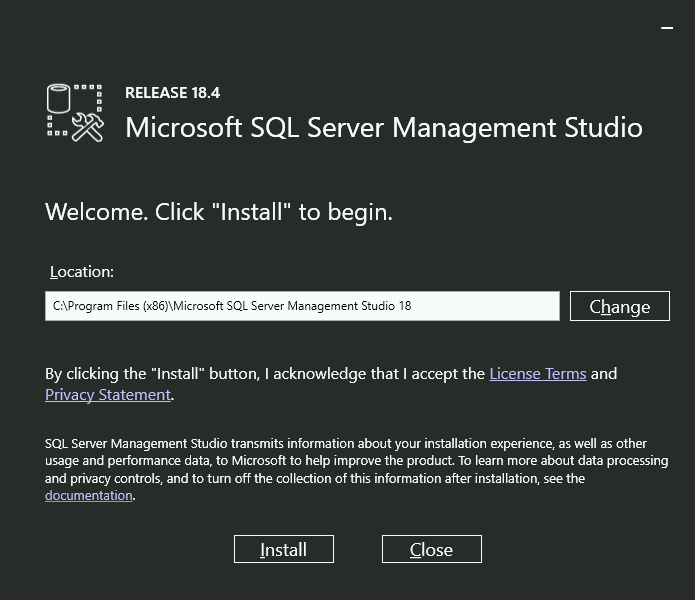

Download and Install Microsoft SQL Server Management Studio wherever you want

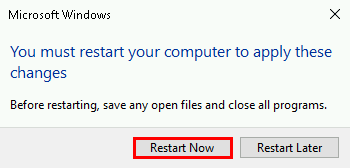

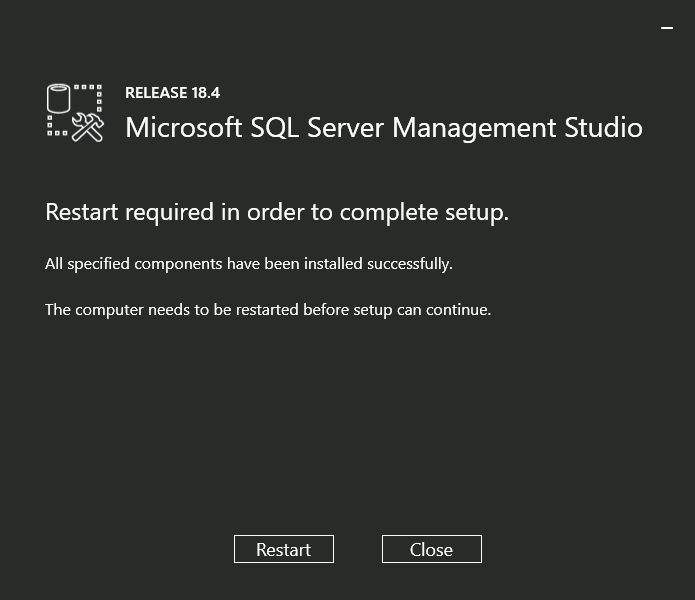

  • Restart the computer

Configure mssqlservice security (MSSQL01 and MSSQL02)

Note : open TCP 1433 and 5022 ports on each server or disable Firewall

  • Open Microsoft SQL Server Management Studio and connect to MSSQL01 server

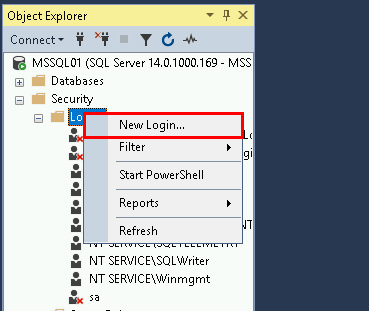

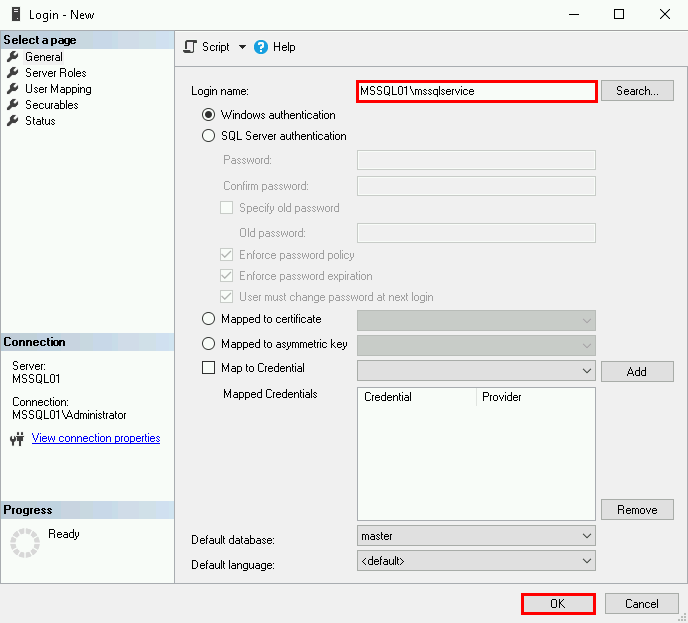

  • Add mssqlservice account into Security > Logins

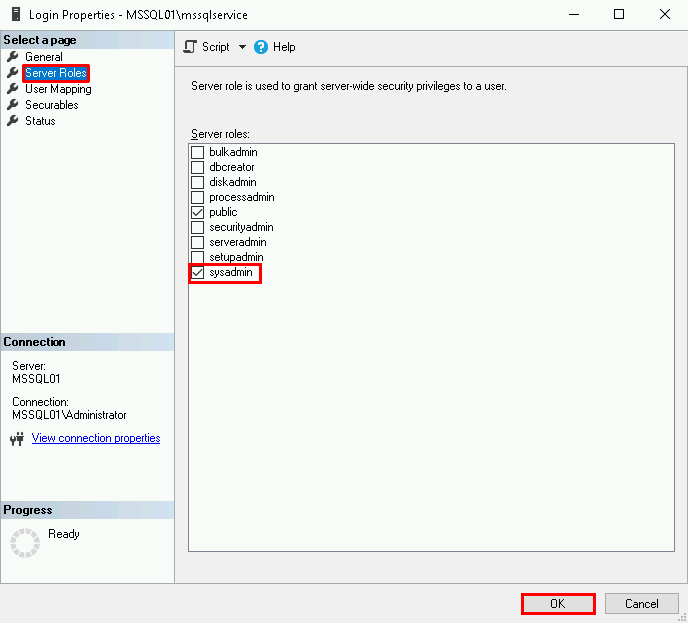

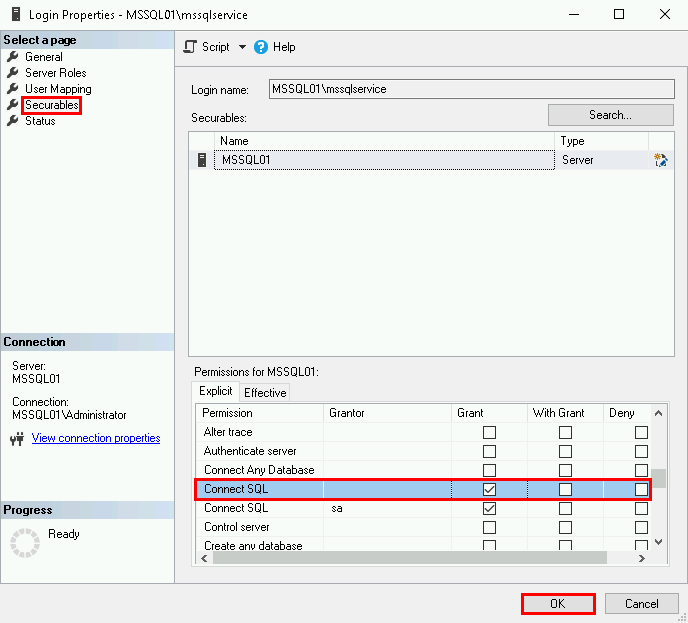

  • Configure mssqlservice account
  • Do the same on MSSQL02 server

Set up SQL Server AlwaysOn feature

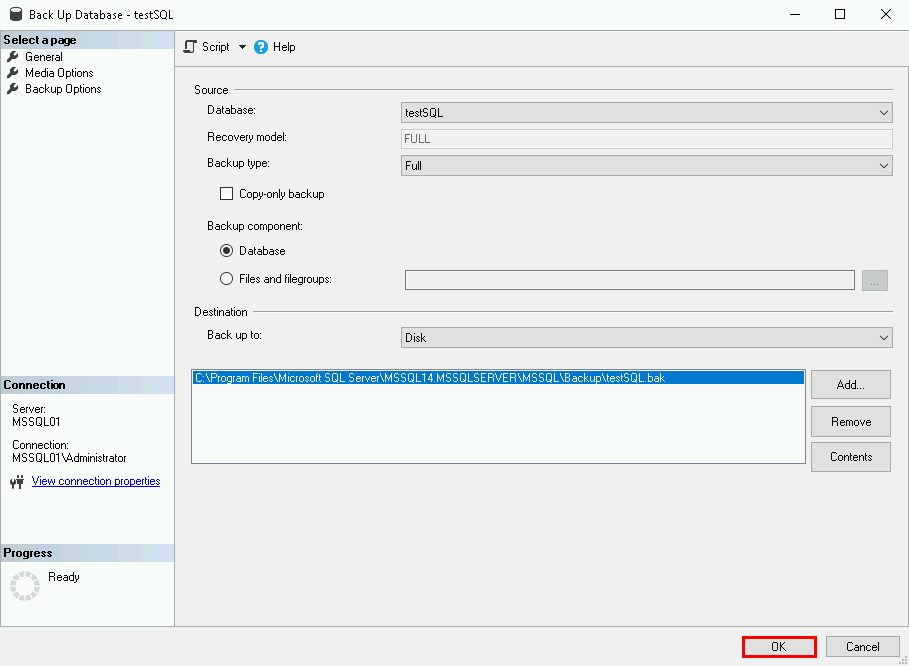

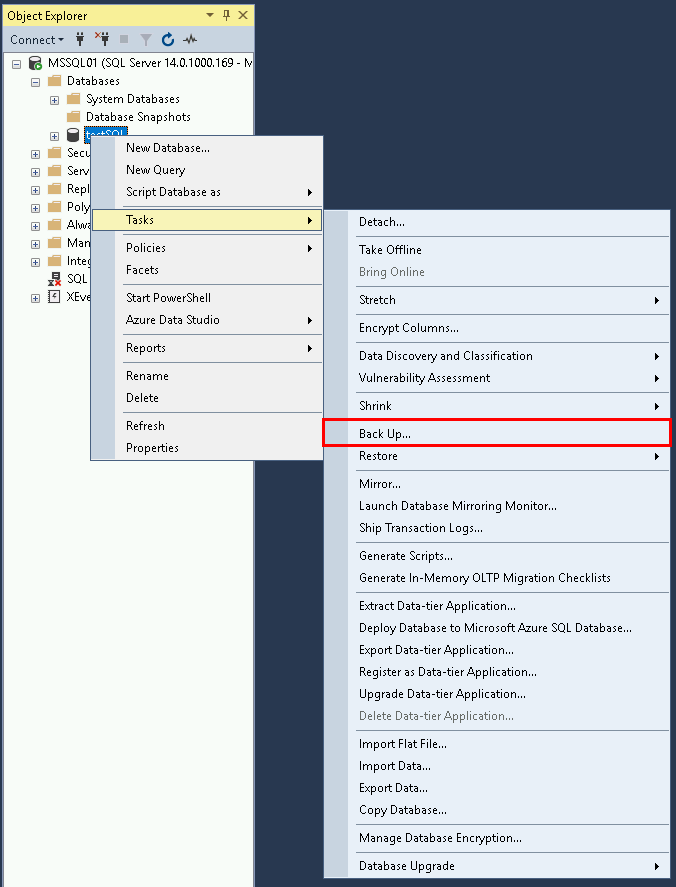

  • First process a database Backup

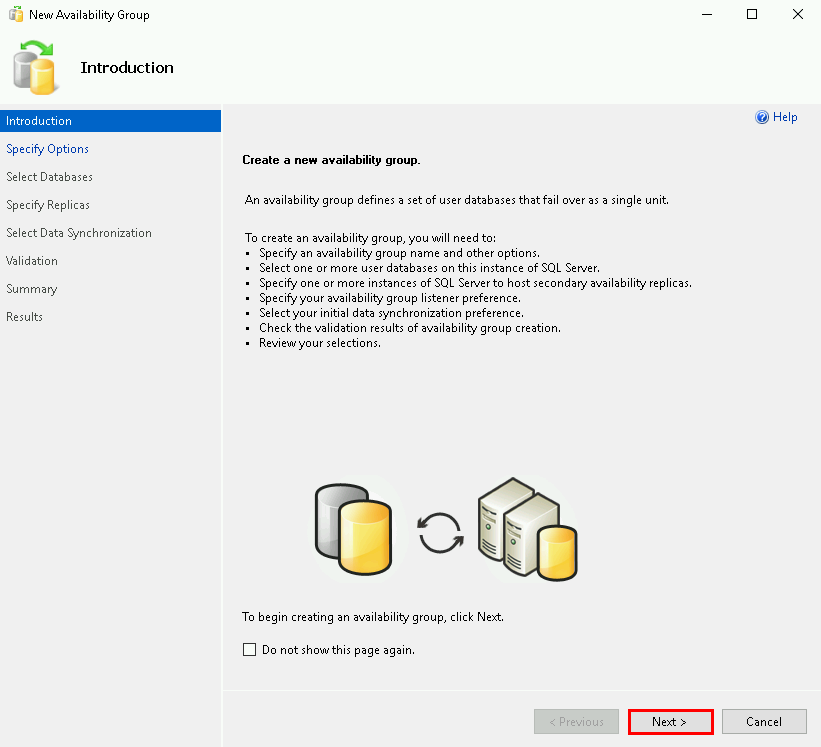

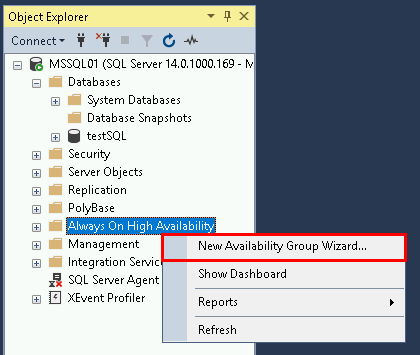

  • Then right click on Always On High Availability and click New Availability Group Wizard

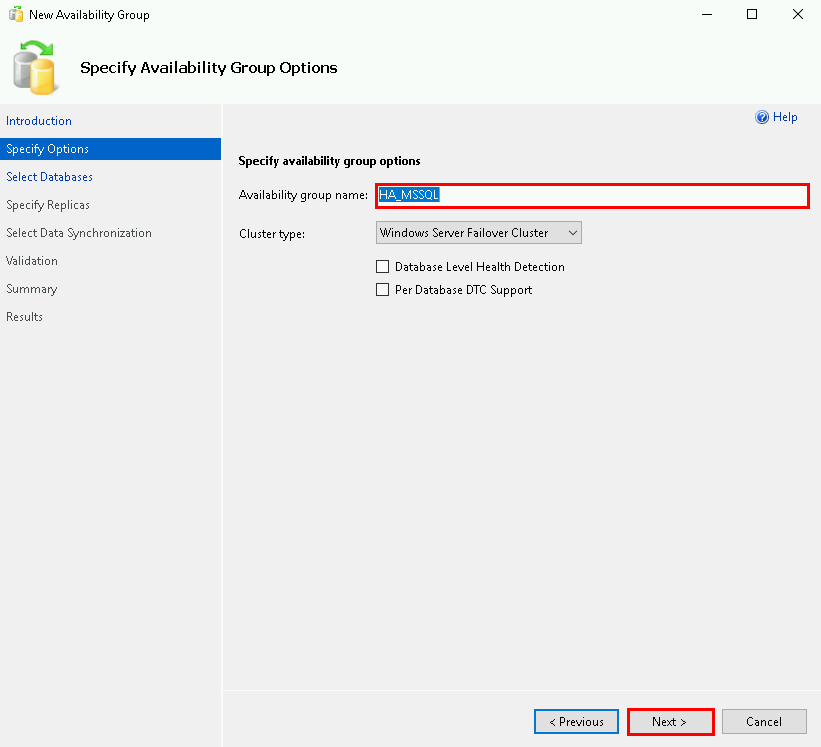

  • Set Availability group name and click Next

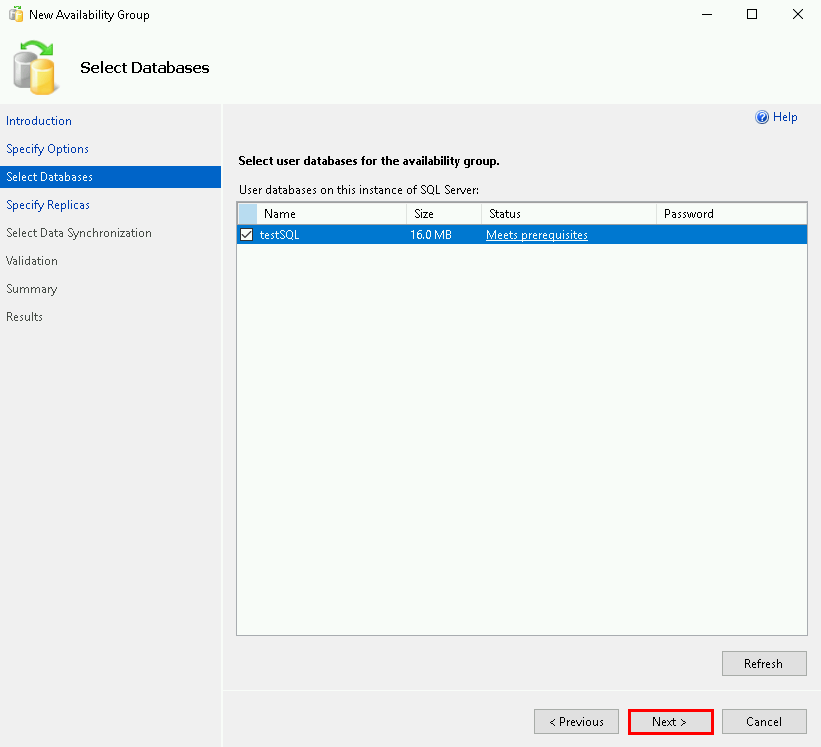

  • Select database and click Next

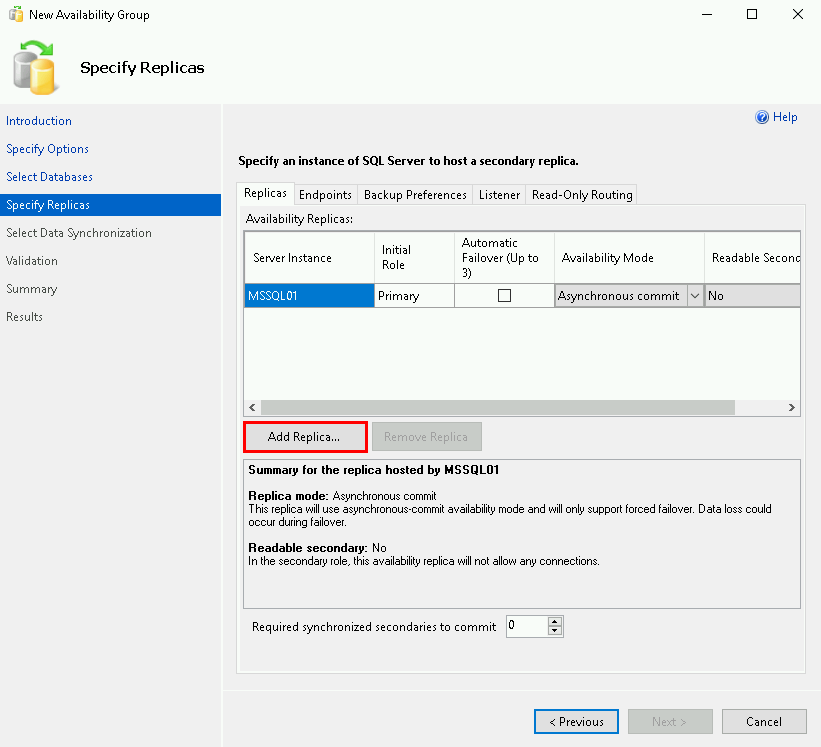

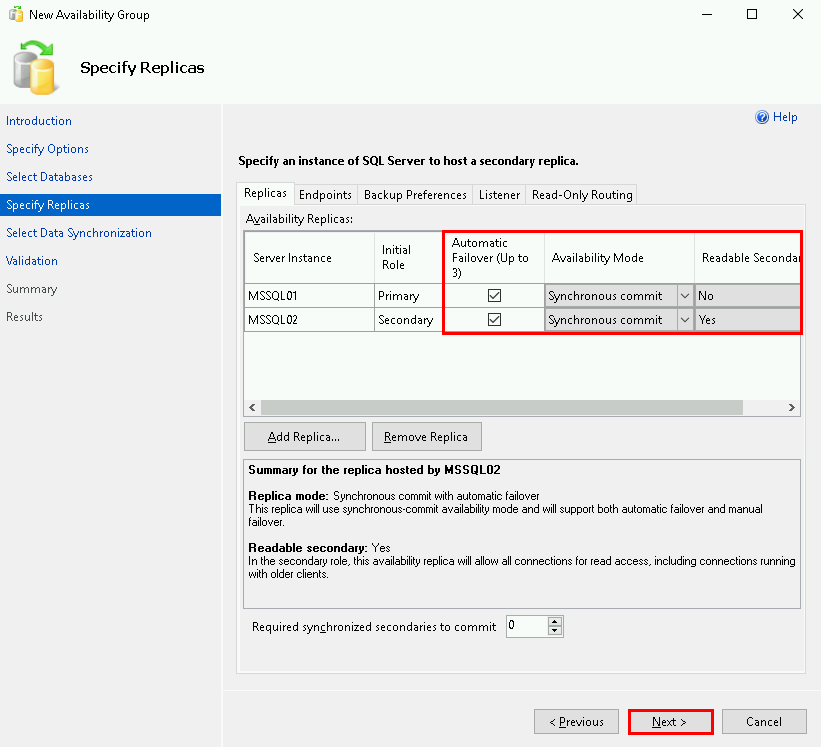

  • Add MSSQL02 server

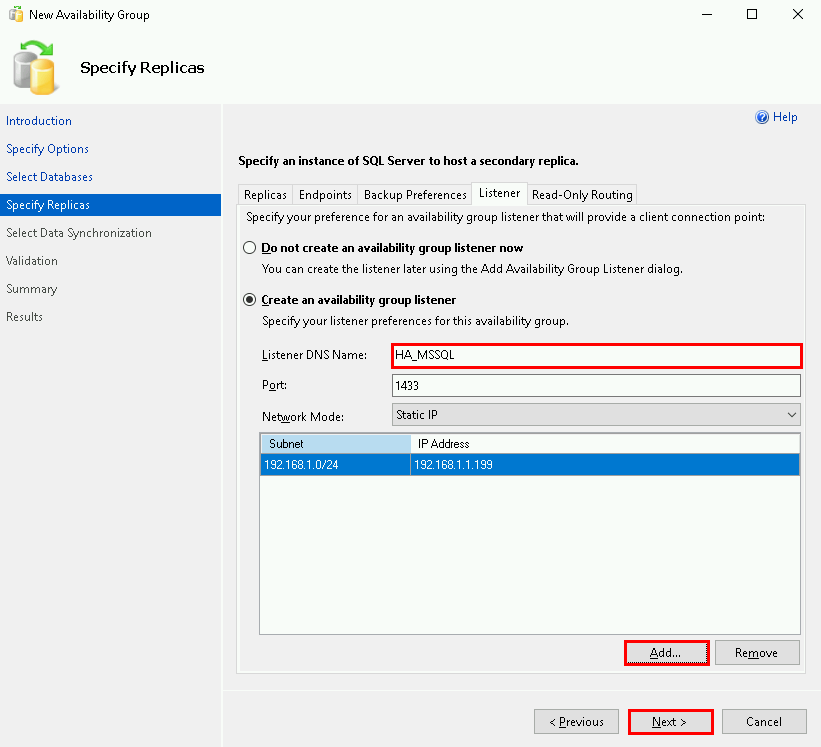

  • Set listener informations

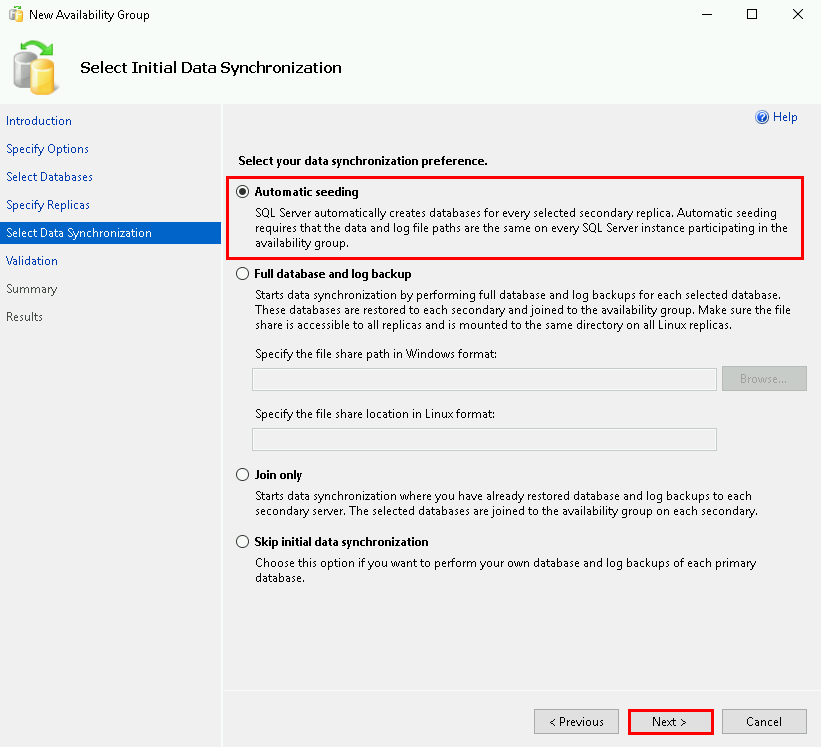

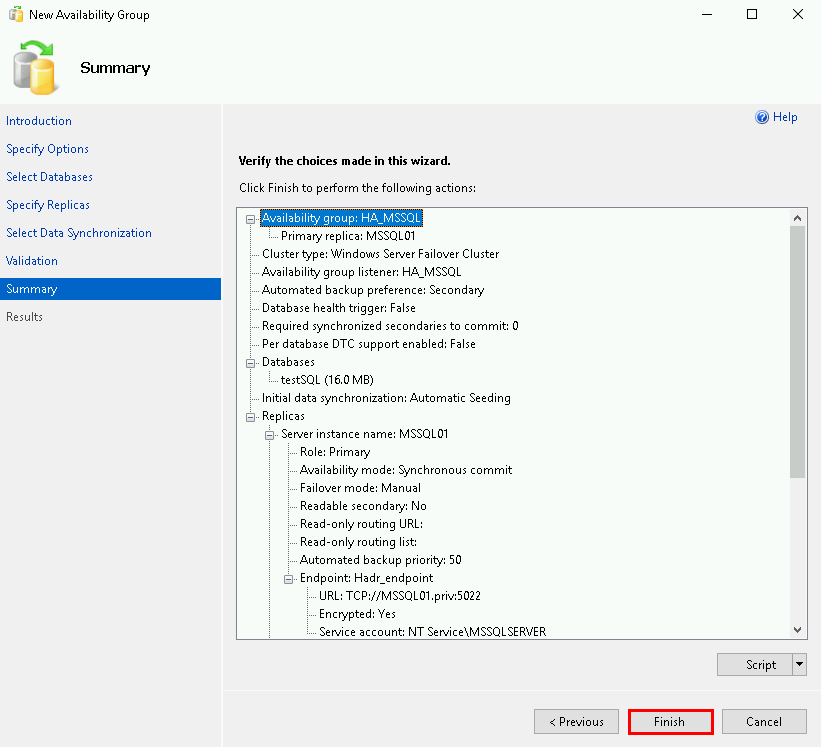

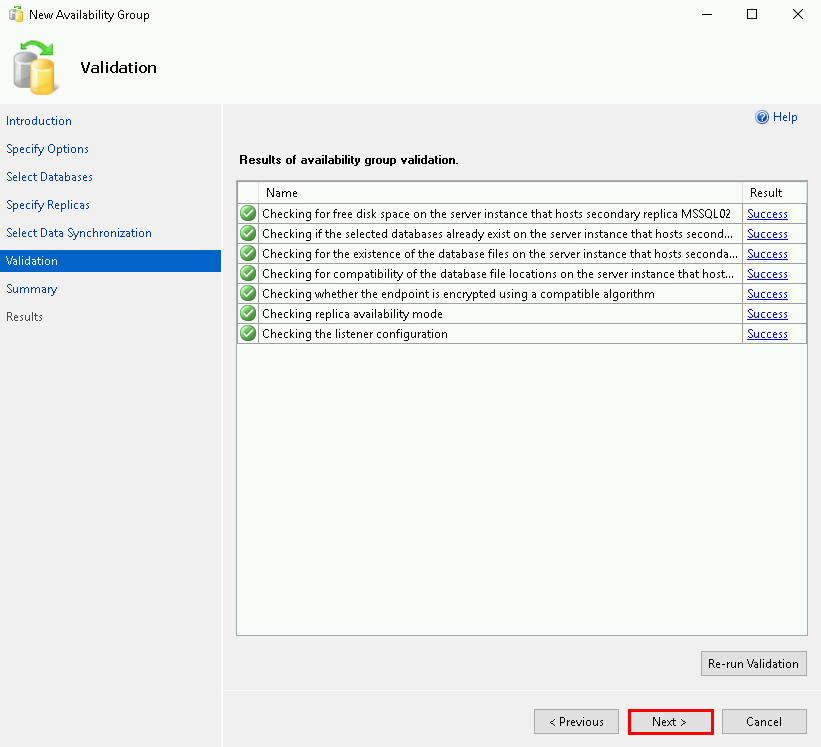

  • Ask for immediate synchronization

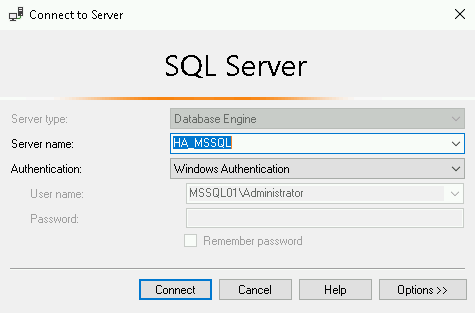

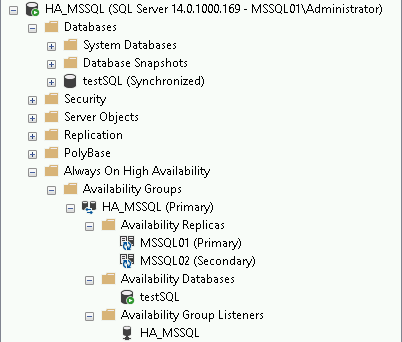

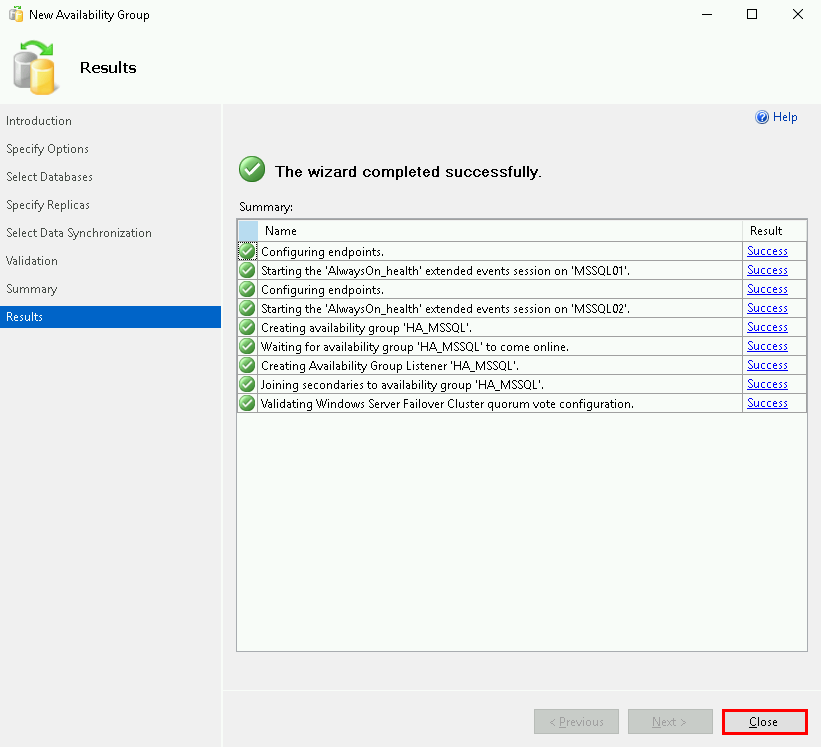

  • Connect to the High Available Instance and check everything is fine

References
