Transport mode between Racoon and Windows hosts with x509 authentication

Intro

Network diagram

Creating a Certification Authority

We create a folder which will contain certificates : /var/certs :

root@host:~# cd /var/;  mkdir certs; cd certs/; mkdir v01; cd v01/


NB : The /usr/lib/ssl/openssl.cnf file allow to pre-populate some informations (Country Name, State Or Privince etc...).
We create the Certification Authority thanks to the /usr/lib/ssl/misc/CA.pl script :

root@host:~# /usr/lib/ssl/misc/CA.pl -newca
CA certificate filename (or enter to create)

aking CA certificate ...
Generating a 1024 bit RSA private key
.............................................++++++
............++++++
writing new private key to './demoCA/private/cakey.pem'
Enter PEM pass phrase:
Verifying - Enter PEM pass phrase:
-----
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [AU]:US
State or Province Name (full name) [Some-State]:MP
Locality Name (eg, city) []:MARS
Organization Name (eg, company) [Internet Widgits Pty Ltd]:COMPANY
Organizational Unit Name (eg, section) []:
Common Name (eg, YOUR name) []:RootCA
Email Address []:admin@company.fr

Please enter the following 'extra' attributes
to be sent with your certificate request
A challenge password []:
An optional company name []:
Using configuration from /usr/lib/ssl/openssl.cnf
Enter pass phrase for ./demoCA/private/cakey.pem:
Check that the request matches the signature
Signature ok
Certificate Details:
	Serial Number:
		d9:34:84:c4:17:20:26:8b
	Validity
		Not Before: Oct  1 13:41:51 2012 GMT
	Not After : Oct  1 13:41:51 2016 GMT
	Subject:
		countryName               = US
		stateOrProvinceName       = MP
		organizationName          = SheBang
		commonName                = RootCA
		emailAddress              = admin@company.fr
	X509v3 extensions:
		X509v3 Subject Key Identifier:
		B4:B6:FD:F4:33:62:76:B7:7B:3C:8A:18:9D:00:A4:0A:E0:5A:3C:DB
		X509v3 Authority Key Identifier:
		keyid:C4:B6:FD:F4:33:63:76:B7:7A:30:8A:18:9D:00:B4:0A:E0:5B:3C:DB
			DirName:/C=FR/ST=MP/O=SheBang/CN=RootCA/emailAddress=admin@company.fr
			serial:D9:34:84:C4:17:20:26:8B

	X509v3 Basic Constraints:
		CA:TRUE
Certificate is to be certified until Oct  1 13:41:51 2016 GMT (1095 days)

Write out database with 1 new entries
Data Base Updated

Alice

Installation

root@host:~# apt-get install racoon ipsec-tools

Debian gateway certificates :

root@host:~# openssl req -new -nodes -newkey rsa:1024 -sha1 -keyform PEM -keyout privkey.pem -outform PEM -out newreq.pem

Generating a 1024 bit RSA private key
.++++++
..............++++++
writing new private key to 'privkey.pem'
-----
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [AU]:FR
State or Province Name (full name) [Some-State]:MP
Locality Name (eg, city) []:MA_VILLE
Organization Name (eg, company) [Internet Widgits Pty Ltd]:SheBang
Organizational Unit Name (eg, section) []:
Common Name (eg, YOUR name) []:VPN-Gateway-Debian
Email Address []:admin@societe.fr

Please enter the following 'extra' attributes
to be sent with your certificate request
A challenge password []:
An optional company name []:


We sign the certificate with the CA :

root@host:~# /usr/lib/ssl/misc/CA.pl -sign
Using configuration from /usr/lib/ssl/openssl.cnf
Enter pass phrase for ./demoCA/private/cakey.pem:
Check that the request matches the signature
Signature ok
Certificate Details:
	Serial Number:
		d9:34:84:c4:17:20:26:8c
	Validity
		Not Before: Oct  1 13:44:34 2012 GMT
		Not After : Oct  1 13:44:34 2013 GMT
	Subject:
		countryName               = US
		stateOrProvinceName       = MP
		localityName              = MARS
		organizationName          = SheBang
		commonName                = VPN-Gateway-Debian
		emailAddress              = admin@company.fr
	X509v3 extensions:
		X509v3 Basic Constraints:
			CA:FALSE
		Netscape Comment:
			OpenSSL Generated Certificate
		X509v3 Subject Key Identifier:
			65:DF:0F:06:02:6F:34:8D:AB:63:E0:5B:1E:26:31:5E:B8:50:19:13
		X509v3 Authority Key Identifier:
			keyid:B4:B6:FD:F4:33:62:76:B7:7A:30:8A:18:9D:00:A4:0A:E0:5B:3C:DB

Certificate is to be certified until Oct  1 13:44:34 2013 GMT (365 days)
Sign the certificate? [y/n]:y


1 out of 1 certificate requests certified, commit? [y/n]y
Write out database with 1 new entries
Data Base Updated
Signed certificate is in newcert.pem

root@host:~# mkdir debian; mv newcert.pem newreq.pem privkey.pem -t debian/; cp debian/* /etc/racoon/certs

Recognize the certificate

root@host:~# ln -s /var/certs/v01/demoCA/cacert.pem `openssl x509 -noout -hash -in /var/certs/v01/demoCA/cacert.pem`.0

/etc/racoon/certs content

user@alice # ls /etc/racoon/certs/
3fda260d.0  cacert.pem  newcert.pem  privkey.pem

/etc/racoon/racoon.conf

#path pre_shared_key "/etc/racoon/psk.txt";
path certificate "/etc/racoon/certs";

remote 192.168.0.85 {
	exchange_mode main;
	my_identifier asn1dn;
	peers_identifier asn1dn;
	verify_identifier on;
	certificate_type x509 "newcert.pem" "privkey.pem";
	proposal {
		encryption_algorithm 3des;
		hash_algorithm sha1;
		authentication_method rsasig ;
		dh_group 2;
	}
}

sainfo address 192.168.0.84 any address 192.168.0.85 any {
	#pfs_group modp768;
	#pfs_group 2;
	lifetime time 1 hour;
	encryption_algorithm 3des;
	authentication_algorithm hmac_sha1;
	compression_algorithm deflate;
}


/etc/ipsec-tools.conf

#!/usr/sbin/setkey -f

#
## Flush the SAD and SPD
flush;
spdflush;

#
spdadd 192.168.0.84 192.168.0.85 any -P out ipsec
    esp/transport//require;
#
spdadd 192.168.0.85 192.168.0.84 any -P in ipsec
   esp/transport//require;
#


Regis

Windows 7 certificate creation

user@alice # openssl req -new -nodes -newkey rsa:1024 -sha1 -keyform PEM -keyout privkey.pem -outform PEM -out newreq.pem

Generating a 1024 bit RSA private key
.................................++++++
......++++++
writing new private key to 'privkey.pem'
-----
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [AU]:US
State or Province Name (full name) [Some-State]:MP
Locality Name (eg, city) []:MARS
Organization Name (eg, company) [Internet Widgits Pty Ltd]:COMPANY
Organizational Unit Name (eg, section) []:
Common Name (eg, YOUR name) []:Host-Windows
Email Address []:admin@societe.fr

Please enter the following 'extra' attributes
to be sent with your certificate request
A challenge password []:
An optional company name []:


We sign the certificate with the CA

user@alice # /usr/lib/ssl/misc/CA.pl -sign
Using configuration from /usr/lib/ssl/openssl.cnf
Enter pass phrase for ./demoCA/private/cakey.pem:
Check that the request matches the signature
Signature ok
Certificate Details:
	Serial Number:
		d9:34:84:c4:17:20:26:8d
	Validity
		Not Before: Oct  1 13:48:48 2012 GMT
		Not After : Oct  1 13:48:48 2013 GMT
	Subject:
		countryName               = US
		stateOrProvinceName       = MP
		localityName              = MARS
		organizationName          = COMPANY
		commonName                = Host-Windows
		emailAddress              = admin@company.fr
	X509v3 extensions:
		X509v3 Basic Constraints:
			CA:FALSE
		Netscape Comment:
			OpenSSL Generated Certificate
		X509v3 Subject Key Identifier:
			3F:8B:22:32:82:01:3A:5A:F6:F4:67:70:BF:06:19:B4:FF:9A:6C:38
		X509v3 Authority Key Identifier:
			keyid:B4:B6:FD:F4:33:62:76:B7:7A:30:8A:18:9D:00:A4:0A:E0:5B:3C:DB

Certificate is to be certified until Oct  1 13:48:48 2013 GMT (365 days)
Sign the certificate? [y/n]:y


1 out of 1 certificate requests certified, commit? [y/n]y
Write out database with 1 new entries
Data Base Updated
Signed certificate is in newcert.pem


Export certificate to PKCS12 format

user@alice # openssl pkcs12 -export -inkey privkey.pem -in newcert.pem -certfile demoCA/cacert.pem -out export.p12 -name "Windows Cert"
Enter Export Password:
Verifying - Enter Export Password:


/var/certs content

user@alice # ls -R
debian  demoCA  export.p12  newcert.pem  newreq.pem  privkey.pem

./debian:
newcert.pem  newreq.pem  privkey.pem

./demoCA:
cacert.pem  careq.pem  certs  crl  crlnumber  index.txt  index.txt.attr  index.txt.attr.old  index.txt.old  newcerts  private  serial  serial.old

./demoCA/certs:

./demoCA/crl:

./demoCA/newcerts:
D93484C41720268B.pem  D93484C41720268C.pem  D93484C41720268D.pem

./demoCA/private:
cakey.pem

Some useful commands

user@alice # setkey -FP
user@alice # racoon -F -f /etc/racoon/racoon.conf
user@alice # setkey -f /etc/ipsec-tools.conf

Certificate installation on the Windows host

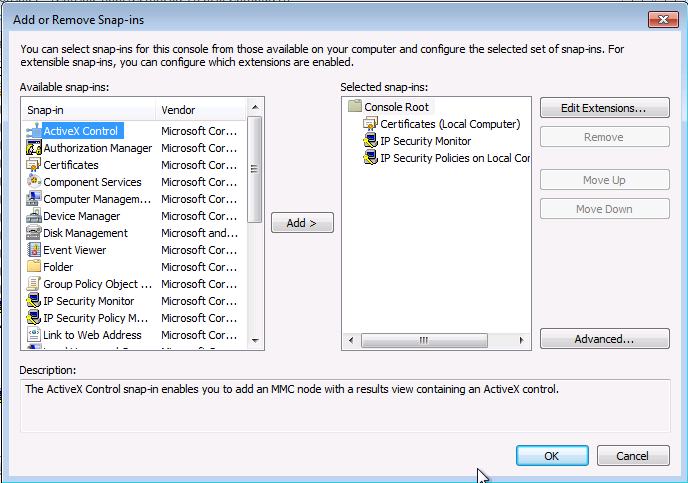

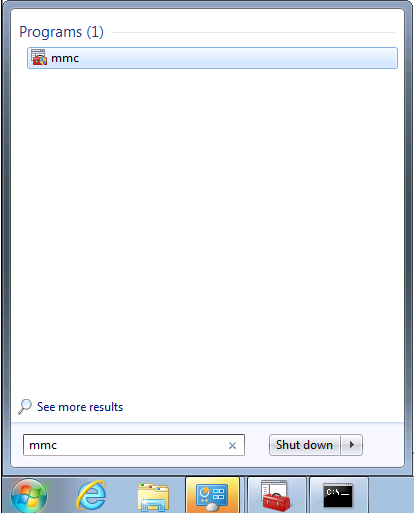

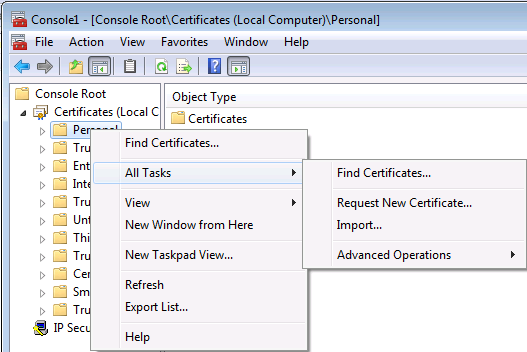

Open the Microsoft Management Console :

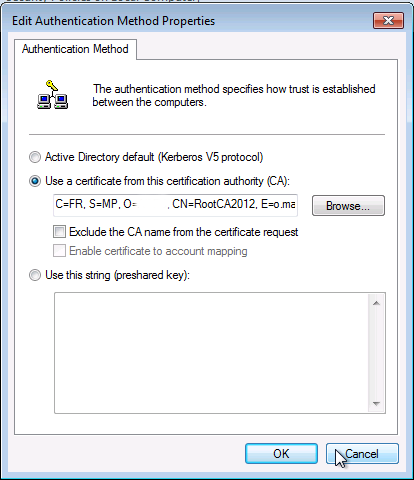

We add the same information already precised here

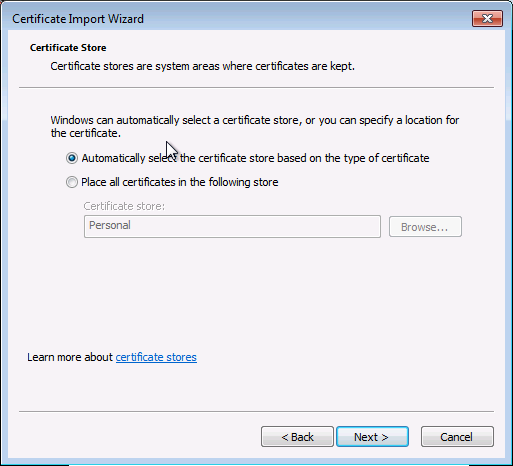

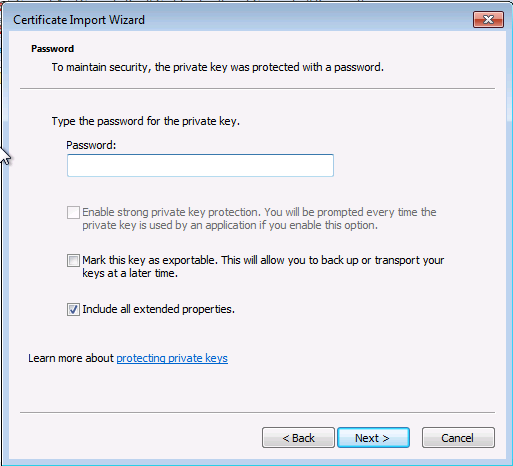

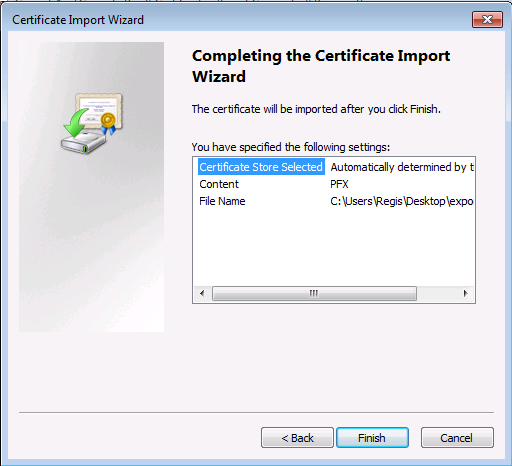

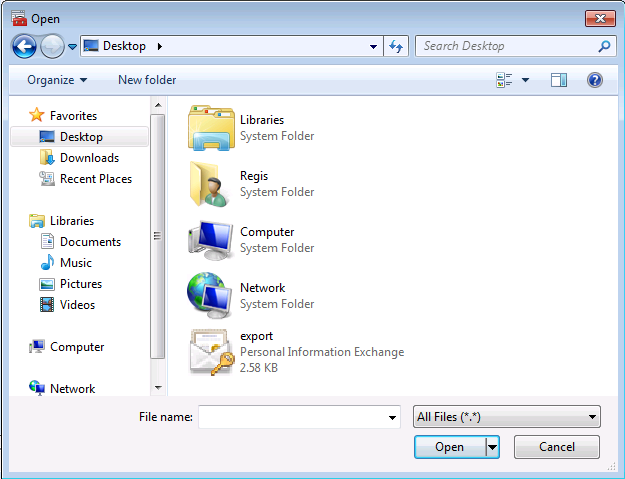

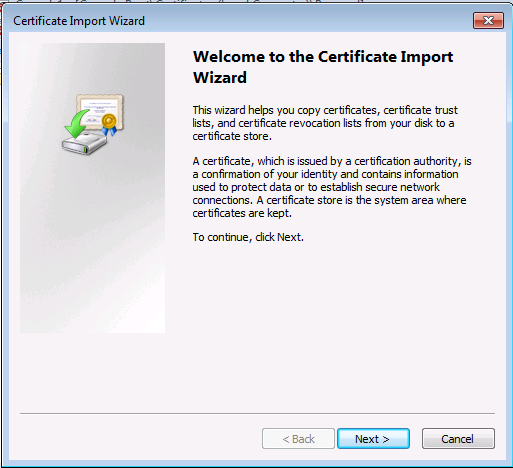

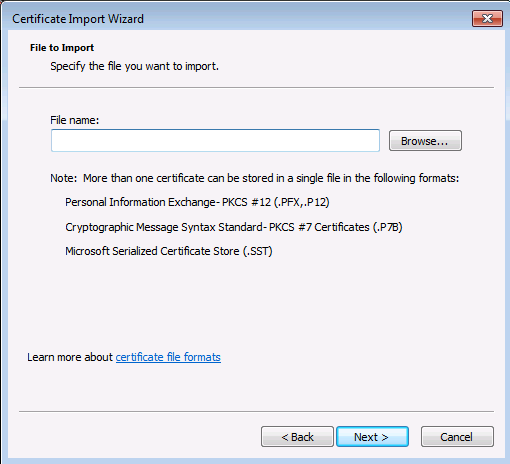

Certificate installation

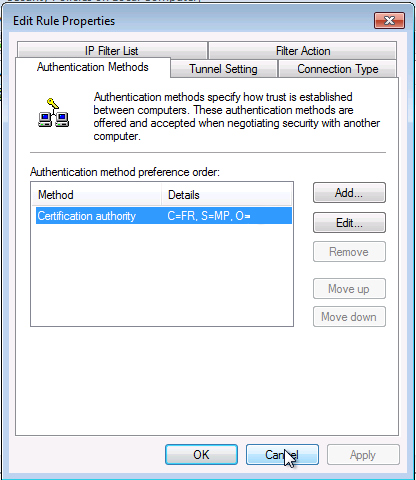

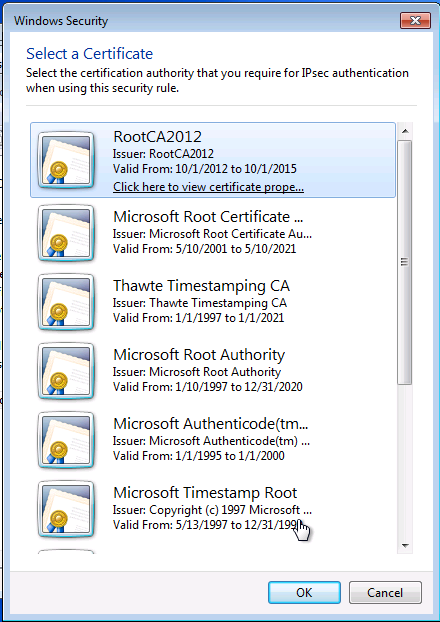

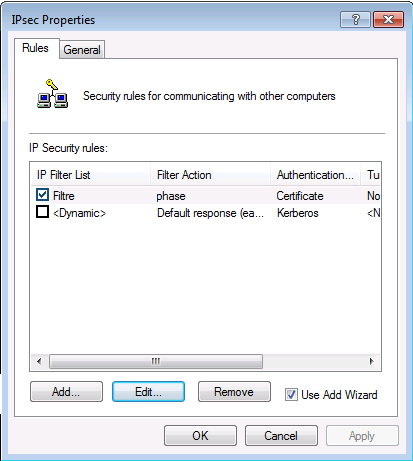

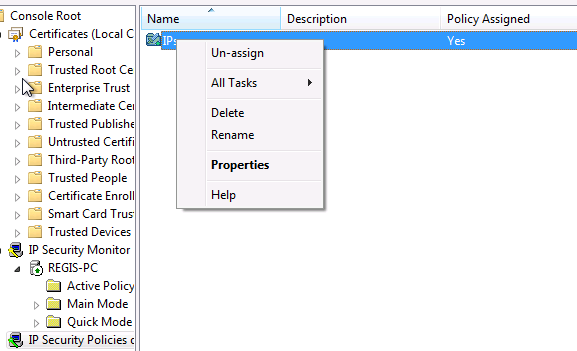

We go back to the MMC console :

Summary
