Transport mode between Racoon and Windows hosts with PSK authentication

Intro

• Mode : Transport, with PSK authentication
• Alice : Debian 8
• ip : 192.168.0.84
• Régis : Windows 7
• ip : 192.168.0.85

Network diagram

Alice

Install racoon and ipsec-tools :

root@host:~# apt-get install racoon ipsec-tools

NB : choose direct modification during raccon installation process.

racoon configuration file is /etc/racoon/racoon.conf

path pre_shared_key "/etc/racoon/psk.txt";
#path certificate "/etc/racoon/certs";

remote 192.168.0.85 {
	exchange_mode main;
	proposal {
		encryption_algorithm 3des;
		hash_algorithm sha1;
		authentication_method pre_shared_key;
		#dh_group modp1024;
		dh_group 2;
	}
#        generate_policy off;
}

sainfo address 192.168.0.84 any address 192.168.0.85 any {
	#pfs_group modp768;
	#pfs_group 2;
	lifetime time 1 hour;
	encryption_algorithm 3des;
	authentication_algorithm hmac_sha1;
	compression_algorithm deflate;
}


Inside /etc/racoon/psk.txt we set the pre-shared key :

# IPv4/v6 addresses
192.168.0.85	TEST

We set SA/SP inside /etc/ipsec-tools.conf :

#!/usr/sbin/setkey -f

## Flush the SAD and SPD
#
flush;
spdflush;

spdadd 192.168.0.84 192.168.0.85 any -P out ipsec
esp/transport//require;
#
spdadd 192.168.0.85 192.168.0.84 any -P in ipsec
esp/transport//require;
#

Useful commands

• Load /etc/ipsec-tools.conf rules :

setkey -f /etc/ipsec-tools.conf

• Run racoon with /etc/racoon/racoon.conf configuration file and see real time logs :

racoon -F -f /etc/racoon/racoon.conf

• Flush the SAD entries :

setkey -F

• Check SA entries :

setkey -D

• Dump SAD and SPD entries :

setkey -DP

• Manage IPSec policies :

ip -s xfrm policy

ip -s xfrm state

Regis

Windows 7

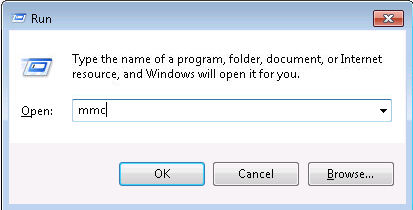

Open Microsoft Management Console :

Add Snap-in :

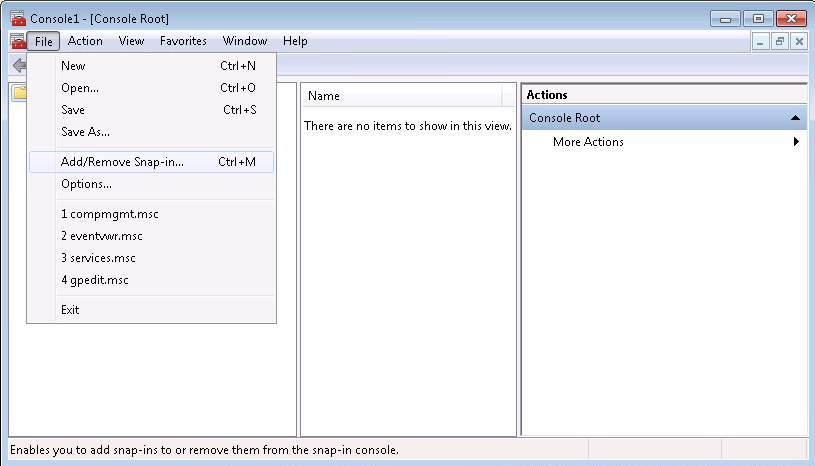

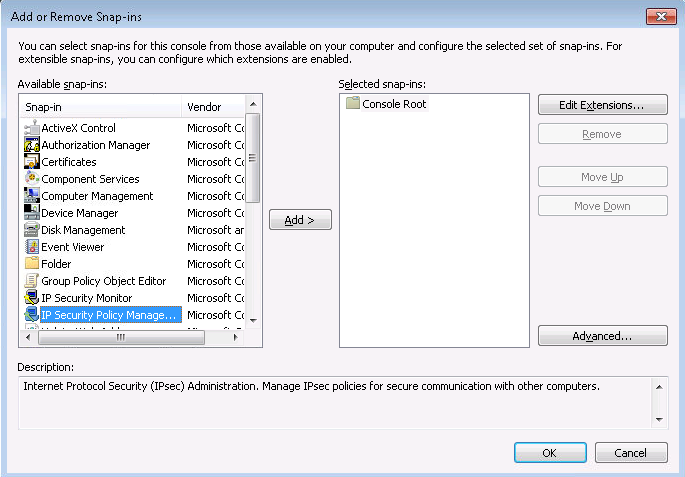

• File > Add/Remove Snap-in :

• IP Security Policy Management > Add IP Security Monitor then IP Security Policies Management

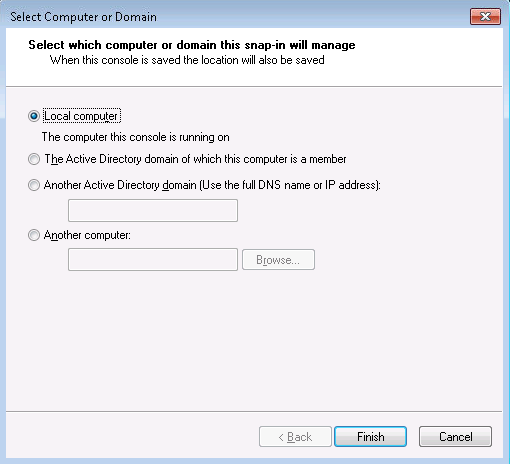

• Local Computer :

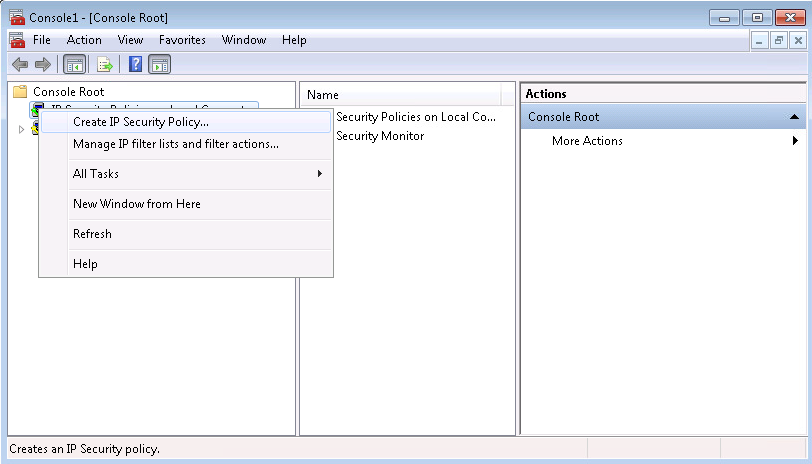

• Right click on IP Security Policies on Local Computer and Create IP Security Policy... :

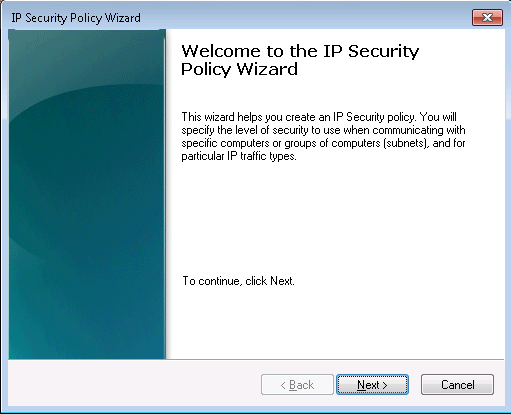

• This windows appears :

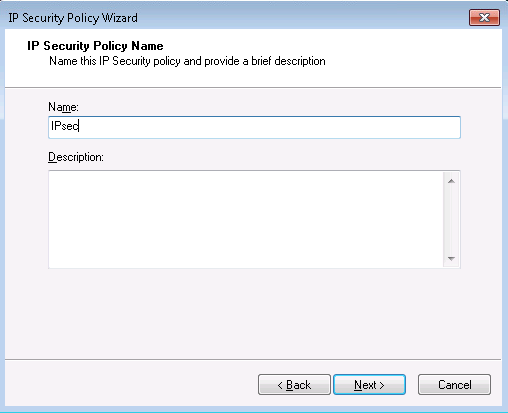

• Click on "Next" then set a policy name :

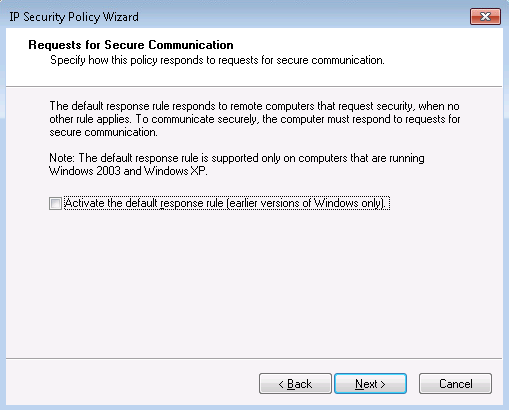

• Unset "Activate the default response rule" :

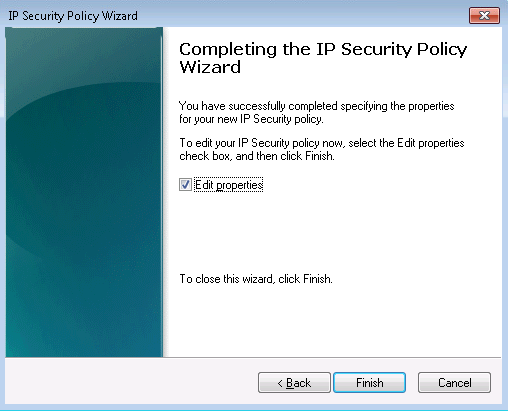

• Then click on "Finish" to edit policy :

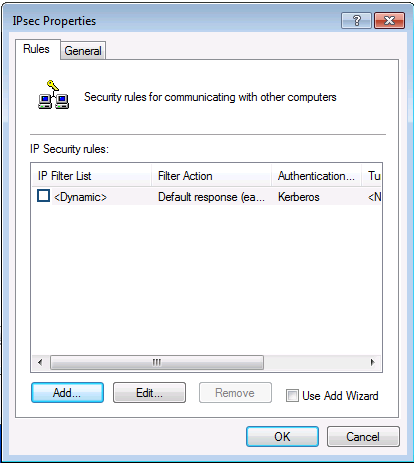

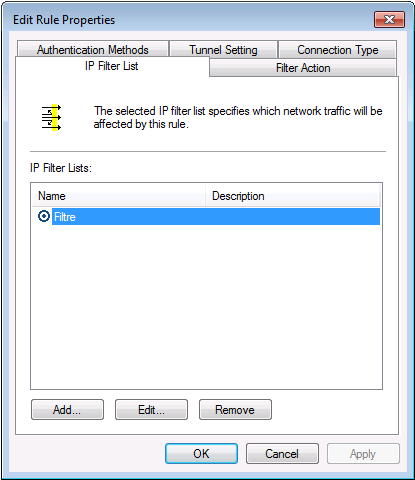

• The IPsec Properties window appears. Unset Use Add Wizard then click on "Add" in order to create a new filter :

• click on "Add" :

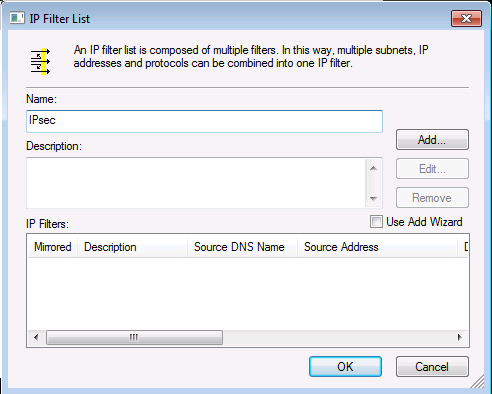

• Set a Name, Unset Use Add Wizard then click on "Add" :

• Set Addresses :

• Set Protocol :

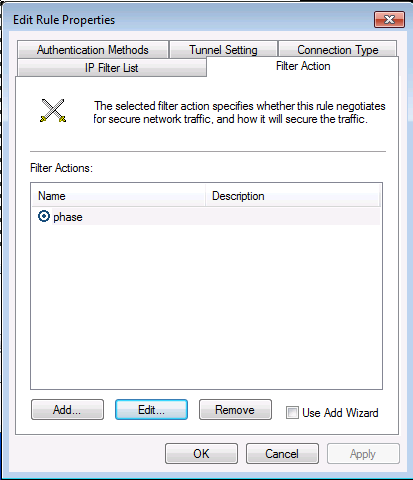

• Filter Action > Phase > Edit

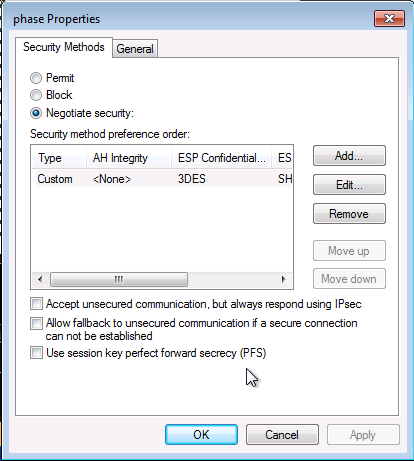

• Security Methods > Negociate security > Add

• Custom > Settings

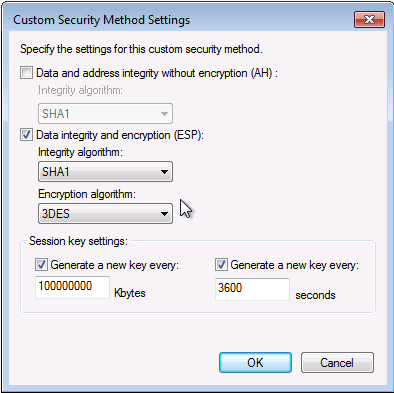

• Set the Security Method

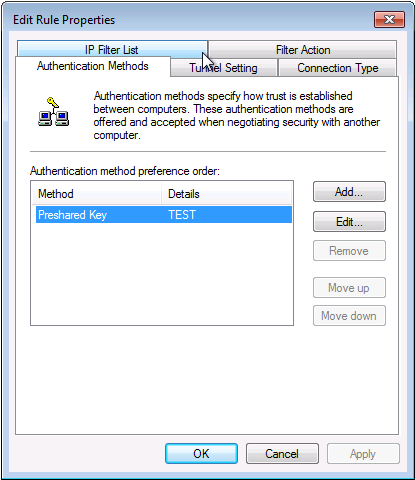

• Authentication Methods > Edit

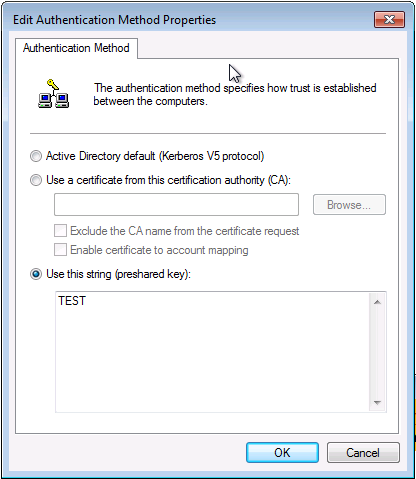

• Set Use this string... with a preshared key

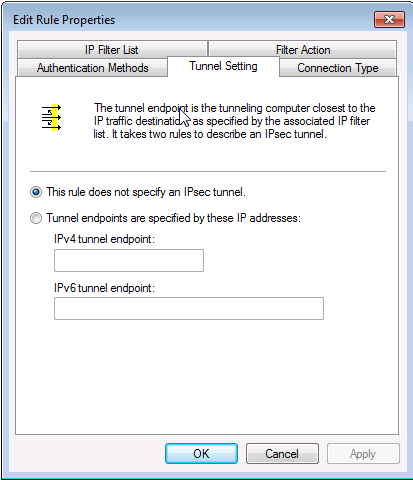

• Tunnel Setting > This rule does not specified by these IPsec tunnel

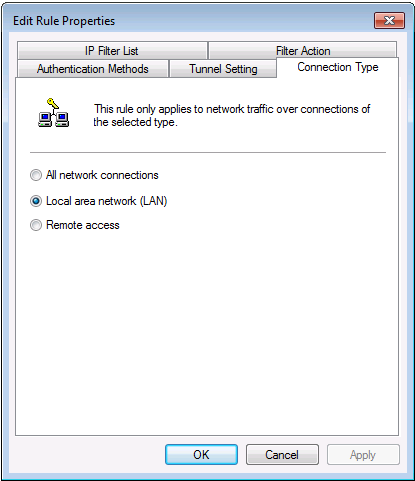

• Connection Type > Local area network (LAN)

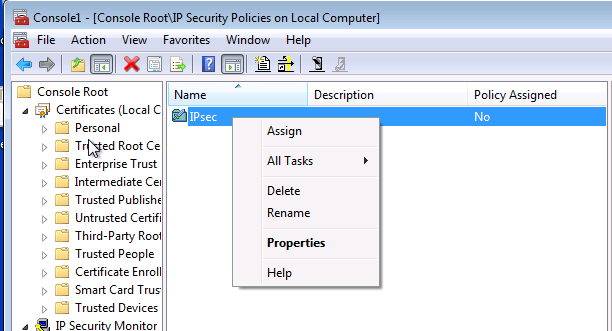

• Don't forget to enable the policy by selecting Assign

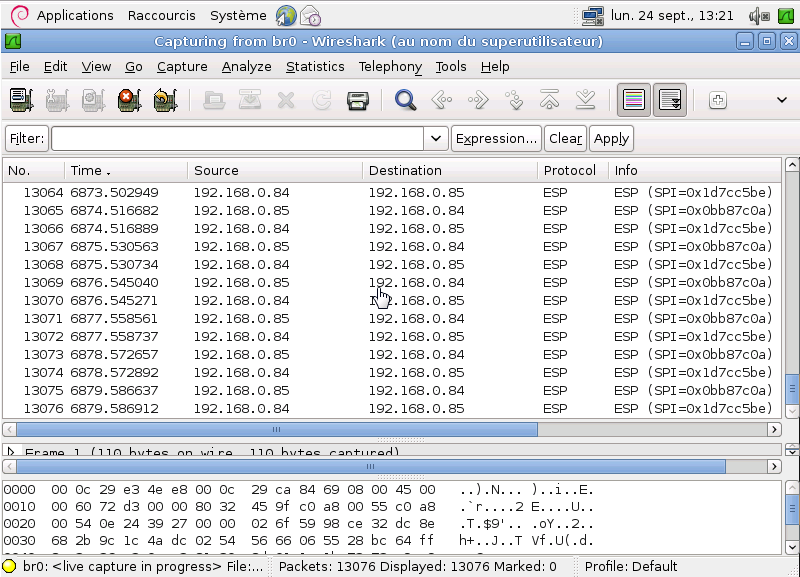

• Wireshark check from the bridge machine
